Carr Lane CL-5-EXPH-2.00 | 5/16" Diameter x 2" Length Expanding Pin

Expanding Pins (Hex Head)

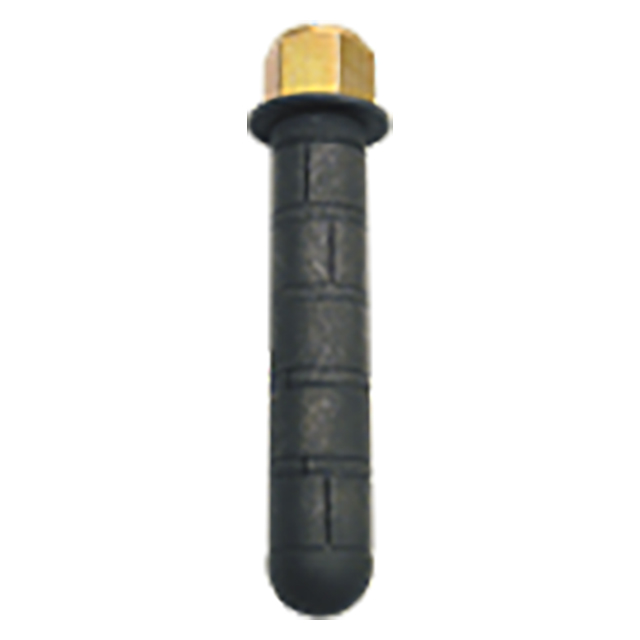

Expanding Pins are precision alignment pins that expand slightly to tighten up hole clearance. This pin is an assembly of female split bushings separated by male segments, all on a center spindle, that expands when drawn together. This assembly provides excellent shear strength, comparable to a solid pin. Expanding Pins can be installed in through holes or blind holes. Available in standard pin diameters from 1/4 to 3/4", each in a choice of several lengths. Made in USA.

Operation

Expanding Pins are an assembly of female split bushings separated by male segments, all on a center spindle, that expands when drawn together. Tightening the hex nut with a wrench expands the pin diameter to take up slack and secure the pin in place. Hold center spindle stationary with a hex wrench while tightening.

Design Consideration

Choose a proper pin length such that no split bushings extend beyond the installation hole. All bushings must be contained by the hole in order to exert full pressure and avoid over-expanding the bushings.

Material

Split bushings, male segments, and spacers > 17-4PH stainless, 17-4PH stainless, Rc 40 min, passivated, dry film lube. Center spindle > Rc 36-40, passivated, dry film lube. Barrel nut and washer > 17-4PH stainless, passivated, dry film lube. Hex nut > 17-4PH stainless, with locking element. RoHS compliant.

Parts Specification

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
