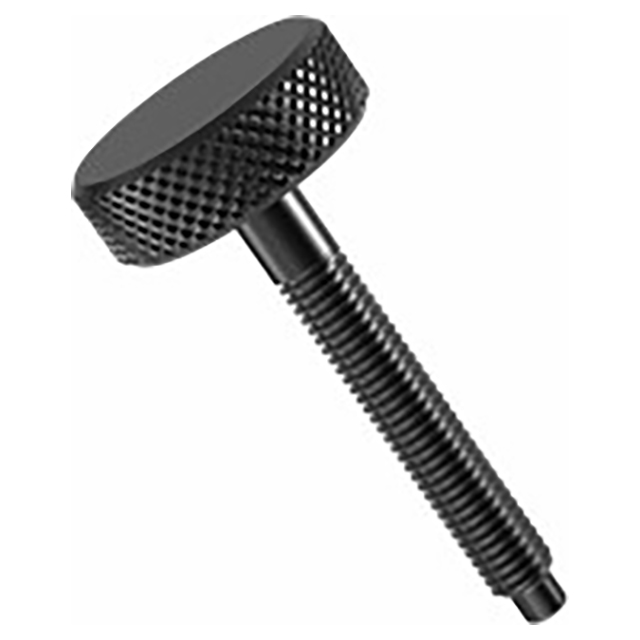

Knurled-Head Screws
High-quality thumb screw. Knurled head provides a positive grip for finger tightening in light clamping applications.
Application Information
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes | |
Parts Specification
| A Thread (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F Diameter (Inch) | G (Inch) |
| 1/4-20" | 2" | 1" | 5/16" | 1/4" | 0.15" | 0.12" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter:
1.0000"
Ships:
From Manufacturer
