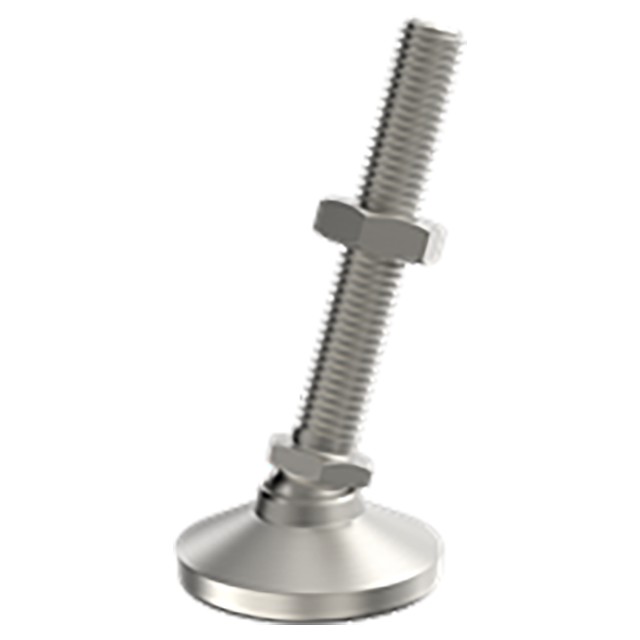

Carr Lane CL-5-SLF-4-S | 5/16-18" Thread Stainless Steel Stud Leveling Feet

$23.07
Ships:
From Manufacturer
Brand:
Carr Lane
Thread Size:
5/16-18"
Ships:
From Manufacturer
SKU:
50016164
UPC:
Weight:
0.20 LBS
Shipping:
Calculated at Checkout

Leveling Feet-Stainless Steel

High-quality, heavy-duty leveling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large swivel ball provides high load capacity with a 20° total swivel angle. Made entirely of stainless steel for extra corrosion resistance. Made in USA.

Application Information

A Stud Leveling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap

Design Considerations & Safety Precautions

Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.

Material

MaterialHeat TreatFinishDFARSRoHS
300-Series Stainless Steel--YesYes

Parts Specification

A ThreadB (Inch)C Diameter (Inch)D (Inch)E (Inch)F (Inch)Load Rating (lbs)
5/16-189/16"1-1/8"3/16"13/16"4"400 lbs

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
