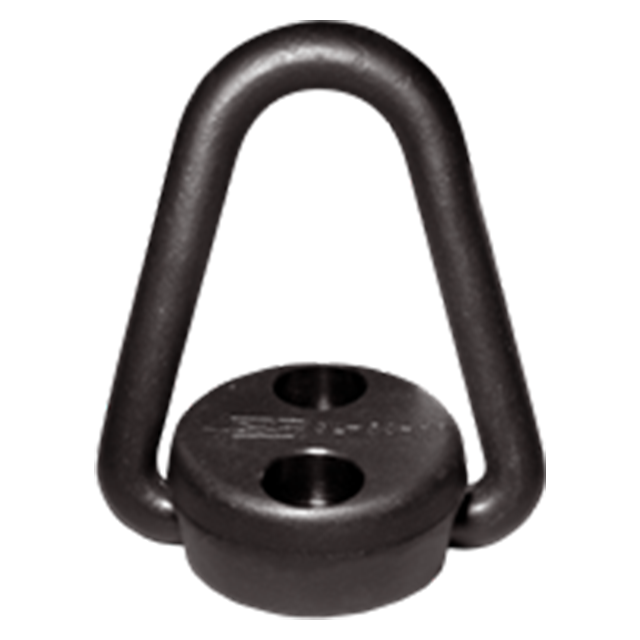

Pivoting Hoist Rings
Rugged, economical hoist ring with a low profile and high load capacity. Forged base and solid-loop forged ring. This hoist ring pivots a full 180°, but does not rotate. Safety factor = 5:1. Made in USA.
Installation

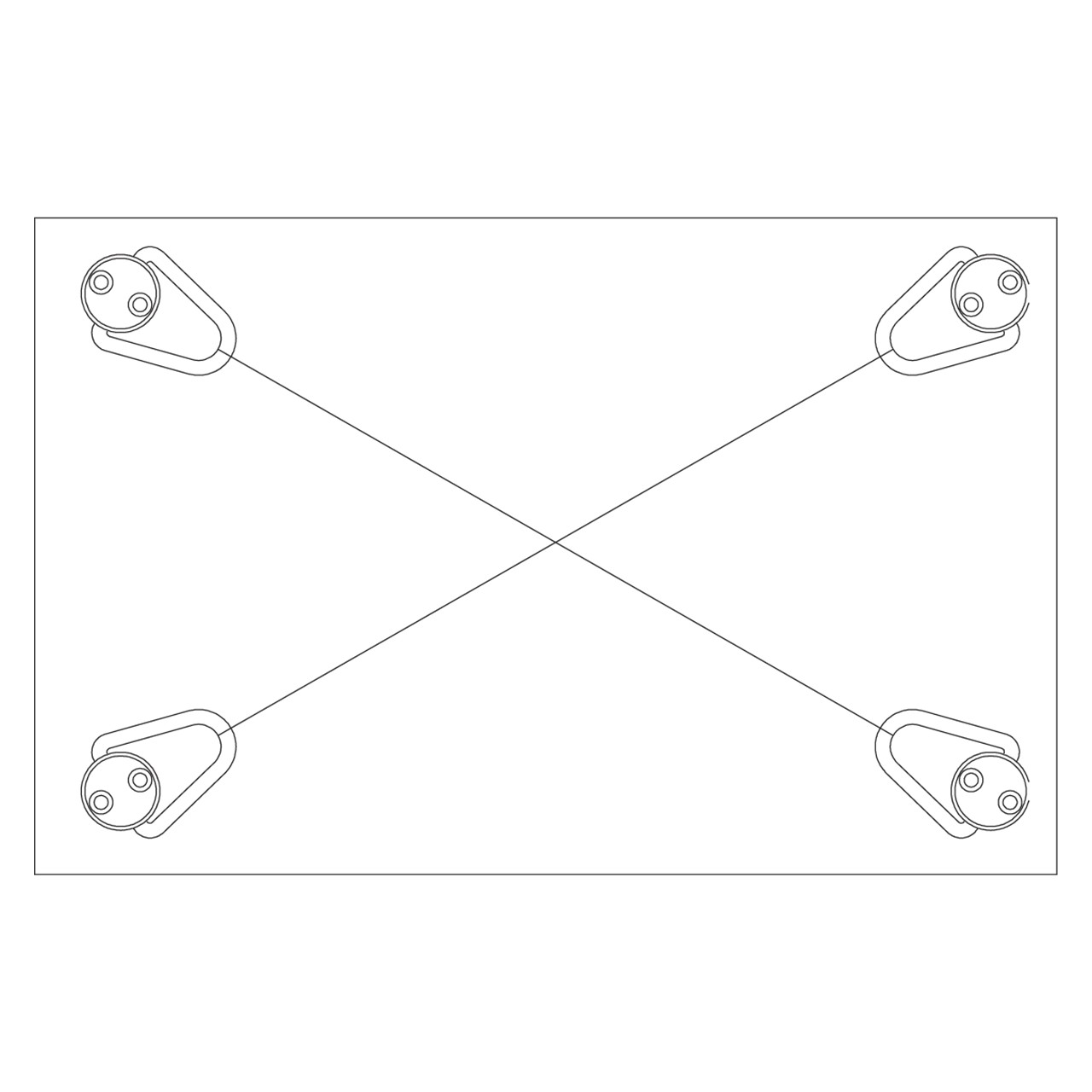

Fasten with grade-8 socket-head cap screws, using the installation torque specified in the dimension table. The smallest three sizes have two mounting holes, the largest two sizes have four. Since these hoist rings do not rotate, install so that lifting force is applied in the pivoting direction.
Material
| Item | Material | Heat Treat | Finish |
| Base | Forged 1045 Steel | Yes | Black Oxide Finish |
| Ring | Forged 4130 Steel | Magnafluxed per ASTM E-1444 | Black Oxide Finish |
Parts Specification
| Load Rating (lbs) | A Diameter (Inch) | C (Inch) | D Thread X Min Length (Inch) | E (Inch) | F (Inch) | G (Inch) | H Diameter (Inch) | R (Inch) | Installation Torque (ft-lbs) | Screw Extension Below Base (Inch) |
| 5000 lbs. | 2-5/8" | 1-1/2" | 1/2-13" x 1.50 (or M12 x 40mm) | 1-1/8" | 3" | 3-7/8" | 1/2" | 3/4 | 20-25 ft-lbs | 0.90" |
