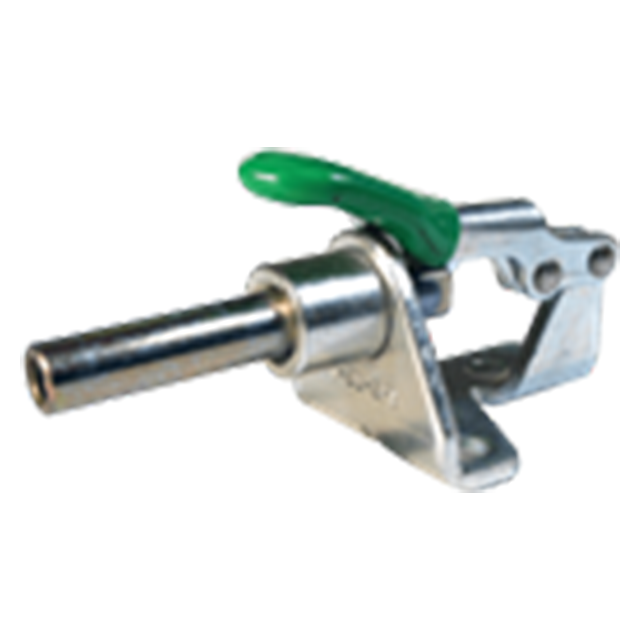

CL-50-SPC Series-100lbs.
Tapped Plunger
Miniature plunger clamp, perfect for electronics fixturing and other light-duty applications. Locks in extended or retracted position. 5/8" plunger travel. Choice of #8-32 tapped plunger (M4 in metric) or 1/4-20 externally threaded plunger. 100 lbs. holding capacity.
Clamping Action
Clamped Position (Push)
Open Position (Push)
Clamped Position (Pull)
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 300-Series Stainless | - | - | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Tapped Hole In Plunger | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Flanged Base | #8-32 | 100lbs. | 0.2lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
