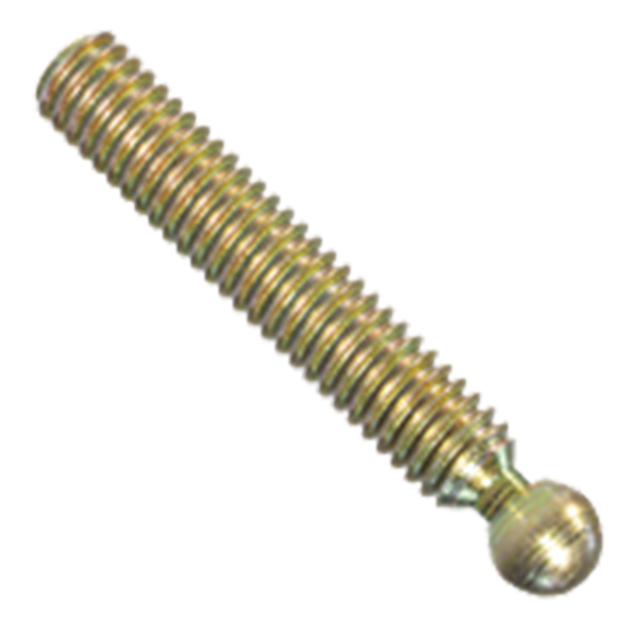

Swivel Screw Clamps
High-quality clamping screw that accepts a wide assortment of swivel feet. Made in USA.
Swivel Foot
Swivel Head Screws use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use.
Design Considerations
For full hex-socket strength, the socket end of the body should be entirely inside its tapped hole during final tightening.
Material
| Steel, Black Oxide Finish | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 or 1144 Steel | Heat Treated | Black Oxide | Yes | Yes |
| Steel Foot | 1215 Steel | Yes | Black Oxide | Yes | Yes |
| Delrin foot | White Delrin500 | Yes | Yes | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | K (Inch) | L Diameter (Inch) | M (Inch) |
| 5/16-18" | 5/32" | 1-1/32" | 5/16" | 23/64" |
