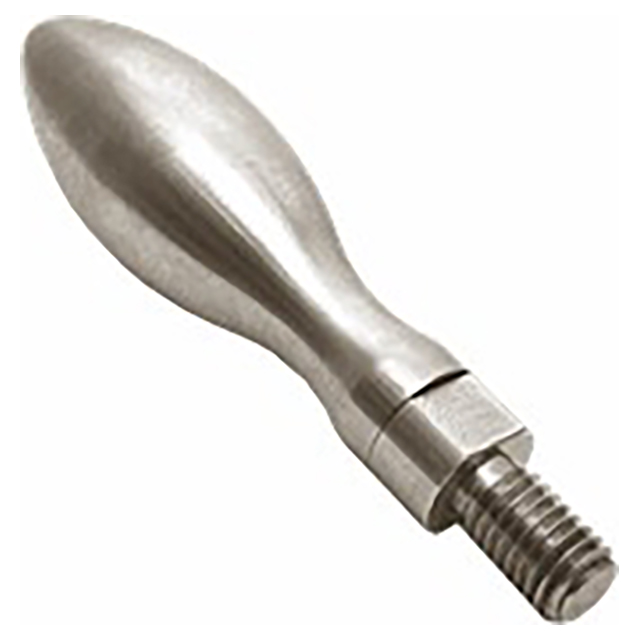

Revolving Handles-Rounded Design, Threaded
Attractive rounded-design handle made of stainless steel with a polished finish. Revolving Handles have an internal bearing that allows the handle to remain fixed in your hand, for firm gripping while turning a Hand Wheel or crank.
Application Information
Revolving Handles can be used to make custom crank handles.
Material
| Material | Heat Treat | Finish | RoHS |
| 300-Series Stainless Steel | Yes | Yes | Yes |
Parts Specification
| Handle Size | A (Inch) | B (Inch) | C Thread (Inch) | D Diameter (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) |
| Size 5 | 4" | 3/4" | 1/2-13" | 1-1/4" | 0.75" | 5/8" | 0.39" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
