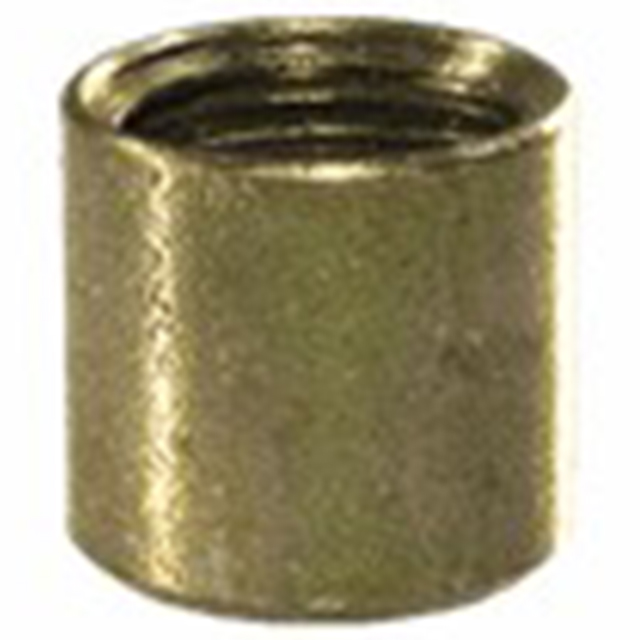

Small Feet
Type A swivel feet are smaller than the swivel screw's minor thread diameter, allowing the swivel screw to pass through a tapped hole. Made in USA.
Patented Design
Feet for Swivel Screws are an important part of the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional.
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 300-Series Stainless Steel | Passivated | Yes | Yes | Yes |
| Delrin | White Delrin500 | Yes | Yes | Yes | Yes |
Parts Specification

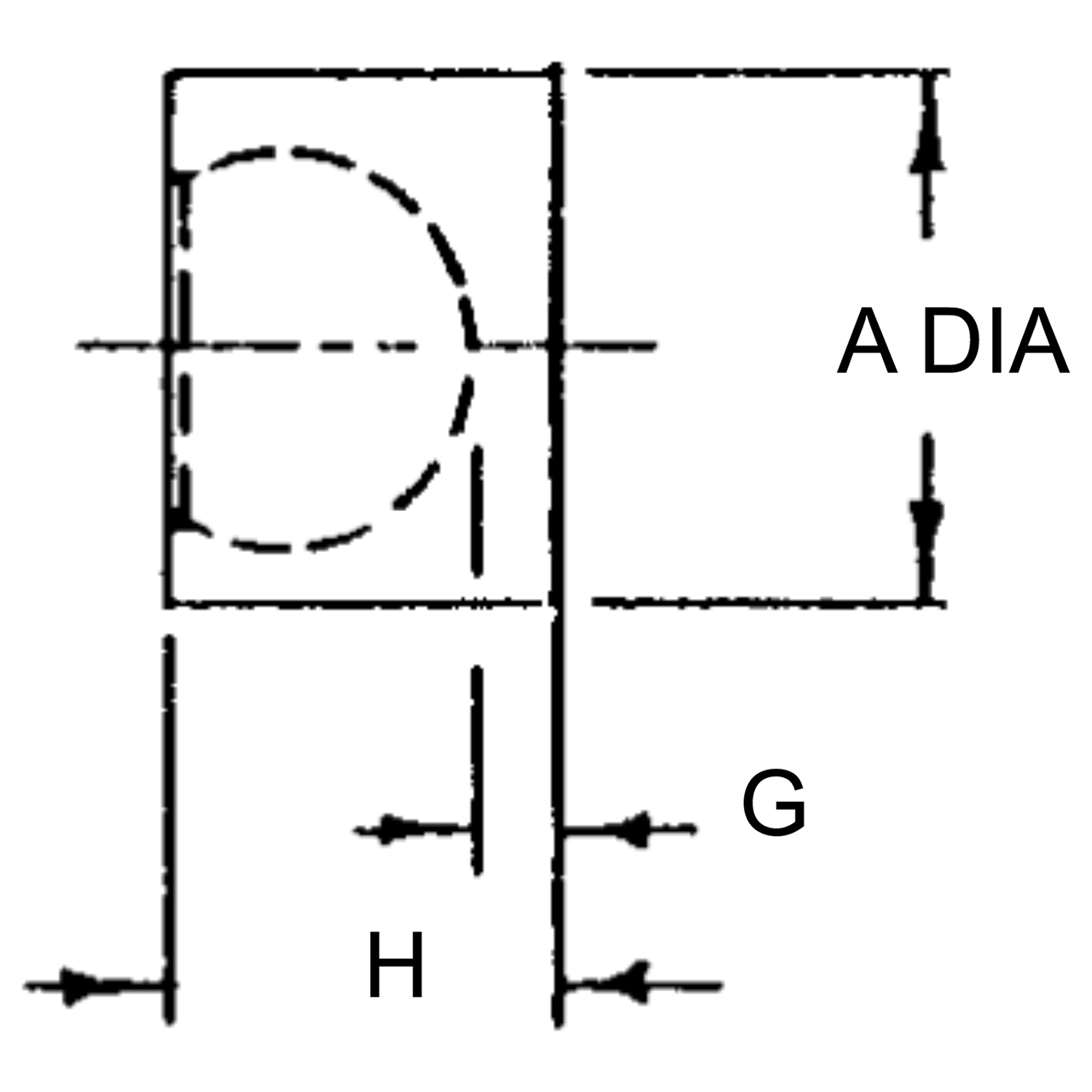

| Fits Body Thread Sizes | A Diameter (Inch) | H (Inch) | G (Inch) |
| 5/8-11 and M16 | 0.500" | 0.470" | 0.076" |
