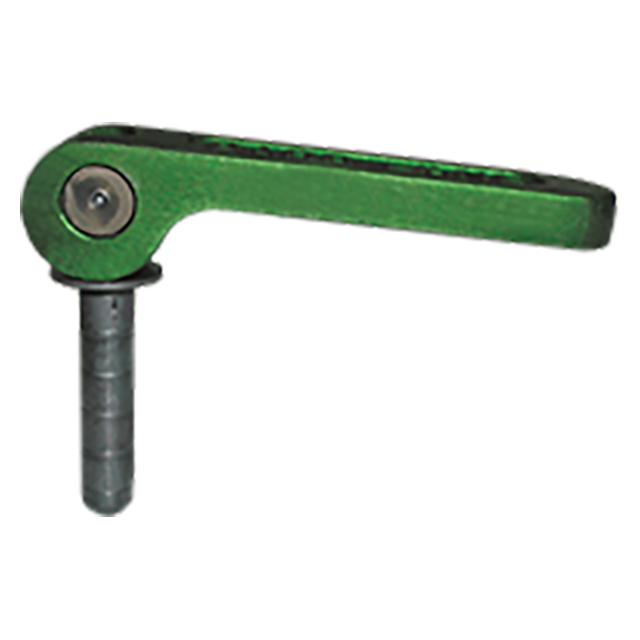

Carr Lane CL-6-EXP-1.50 | 3/8" Diameter x 1.5" Length Expanding Pin

Expanding Pins (Cam Handle)

Expanding Pins are precision alignment pins that expand slightly to tighten up hole clearance. This pin is an assembly of female split bushings separated by male segments, all on a center spindle, that expands when drawn together. This assembly provides excellent shear strength, comparable to a solid pin. Expanding Pins can be installed in through holes or blind holes. Made in USA.

Operation

Expanding Pins are an assembly of female split bushings separated by male segments, all on a center spindle, that expands when drawn together. Moving the cam handle through its full travel expands the pin diameter to take up slack and secure the pin in place. If additional adjustment is required to achieve desired retention force, loosen the setscrew in the center of the barrel nut, turn the center spindle to achieve a tight fit, then re-tighten the setscrew.

Design Consideration

Choose a proper pin length such that no split bushings extend beyond the installation hole. All bushings must be contained by the hole in order to exert full pressure and avoid over-expanding the bushings.

Material

Split bushings, male segments, and spacers > 17-4PH stainless, Rc 40 min, passivated, dry film lube. Center spindle > 17-4PH stainless, Rc 36-40, passivated, dry film lube. Barrel nut and washer > 17-4PH stainless, passivated, dry film lube. Handle > Aluminum alloy, powder coated. RoHS compliant.

Parts Specification
