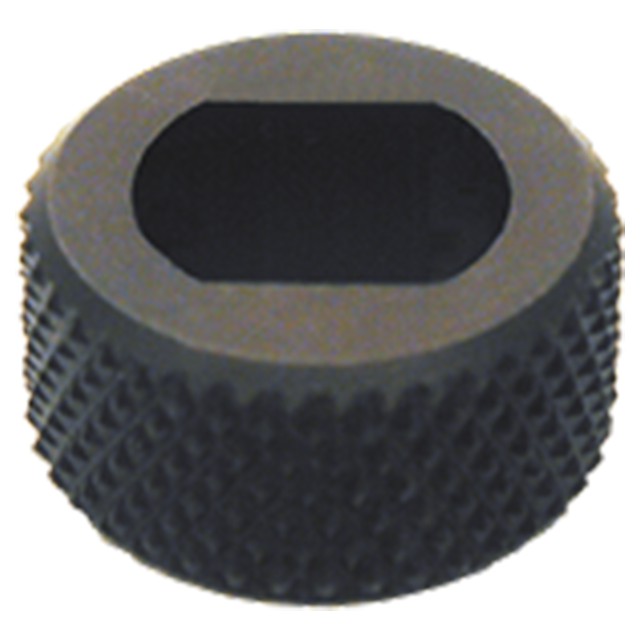

Knurled Slotted Locator Bushings
Knurled design for embedding in plastic tooling. Slotted Locator Bushings can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. Made in USA.
Application Information
A standard knurled DG bushing (for primary location) and a knurled Slotted Locator Bushing (for secondary location) are used with L Pins to align two holes without binding.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Tool Steel | Rc 58-62 | Black Oxide | Yes | Yes |
Parts Specification
| Pin Diameter (Inch) | A | B Diameter (Inch) | C Diameter (Inch) | L (Inch) |
| 3/8" | 0.375 | 0.500" | 0.890" | 1/2" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter:
3/8"
Ships:
From Manufacturer
