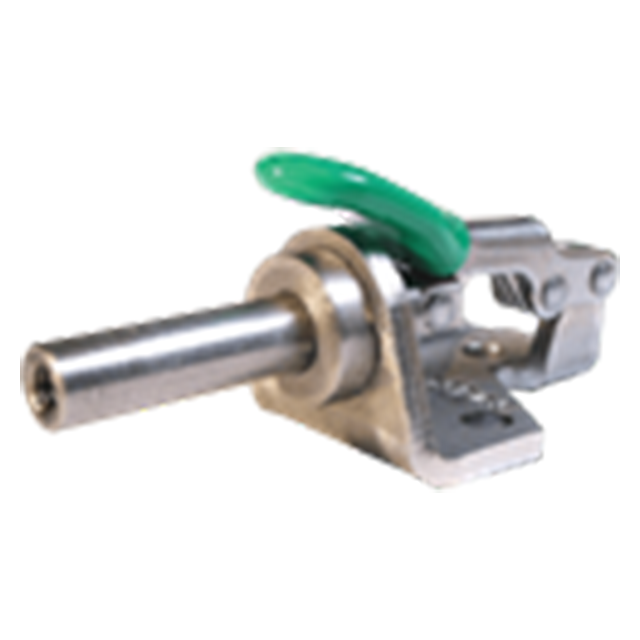

CL-60-SPC Series-150lbs.
Tapped Plunger
Heavier-duty version of the smallest plunger clamp (CL-50-SPC). This is a powerful clamp in an extremely compact size. Unique base allows bottom or side mounting. Locks in extended or retracted position. 5/8" plunger travel. Plunger is tapped to accept any #8-32 spindle (M4 in metric). 150 lbs. holding capacity.
Clamping Action
Clamped Position (Push)
Open Position (Push)
Clamped Position (Pull)
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1215, 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 300-Series Stainless | - | - | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Tapped Hole In Plunger | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Flanged Base | #8-32 | 150lbs. | 0.2lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
