Carr Lane CL-64-SLTB-.6250 | 5/8" Diameter Slotted Locator Bushing

Slotted Locator Template Bushings

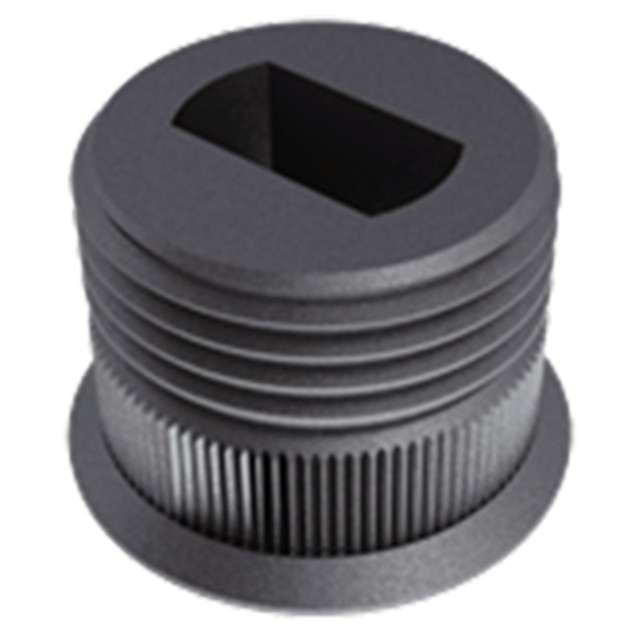

These Slotted Locator Bushings are designed for thin template jig plates from 3/64" to 3/8" thick. Slotted Locator Bushings can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. Bushings are held in place by a threaded Retainer Ring. Flush contact of the Retainer Ring against the jig plate ensures perpendicularity. OD serrations prevent the bushing from rotating. Threaded Template Bushings can be easily removed to replace or reuse. Made in USA.

Application Information

Slotted Locator Template Bushing shown installed with Retainer Ring.

Installation

Drill hole in jig plate to nominal bushing OD (B diameter). Countersink 90° to allow bushing to seat flush to 0.015" below surface of plate. Install and tighten Retainer Ring to secure.

Material

Parts Specification
