Product Information

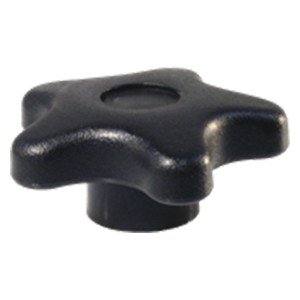

Star Knobs have five lobes to provide a firm, sure grip for applications requiring quick tightening and high torque. These thermoplastic knobs have smooth, rounded lobes to prevent snagging. Textured non-slip, non-glare finish. Molded-in brass insert provides superior thread strength. One knob size, available with tapped-hole sizes from 1/4-20 to 3/8-16. Non-standard thread sizes, reamed holes, molded-in studs, or special colors are available in quantities of 500 and above. Made in USA.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Star Knobs – Tapped (Thermoplastic) | Black Thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 150 Degree) | - | Molded-in Brass Insert | ✔ | ✔ |

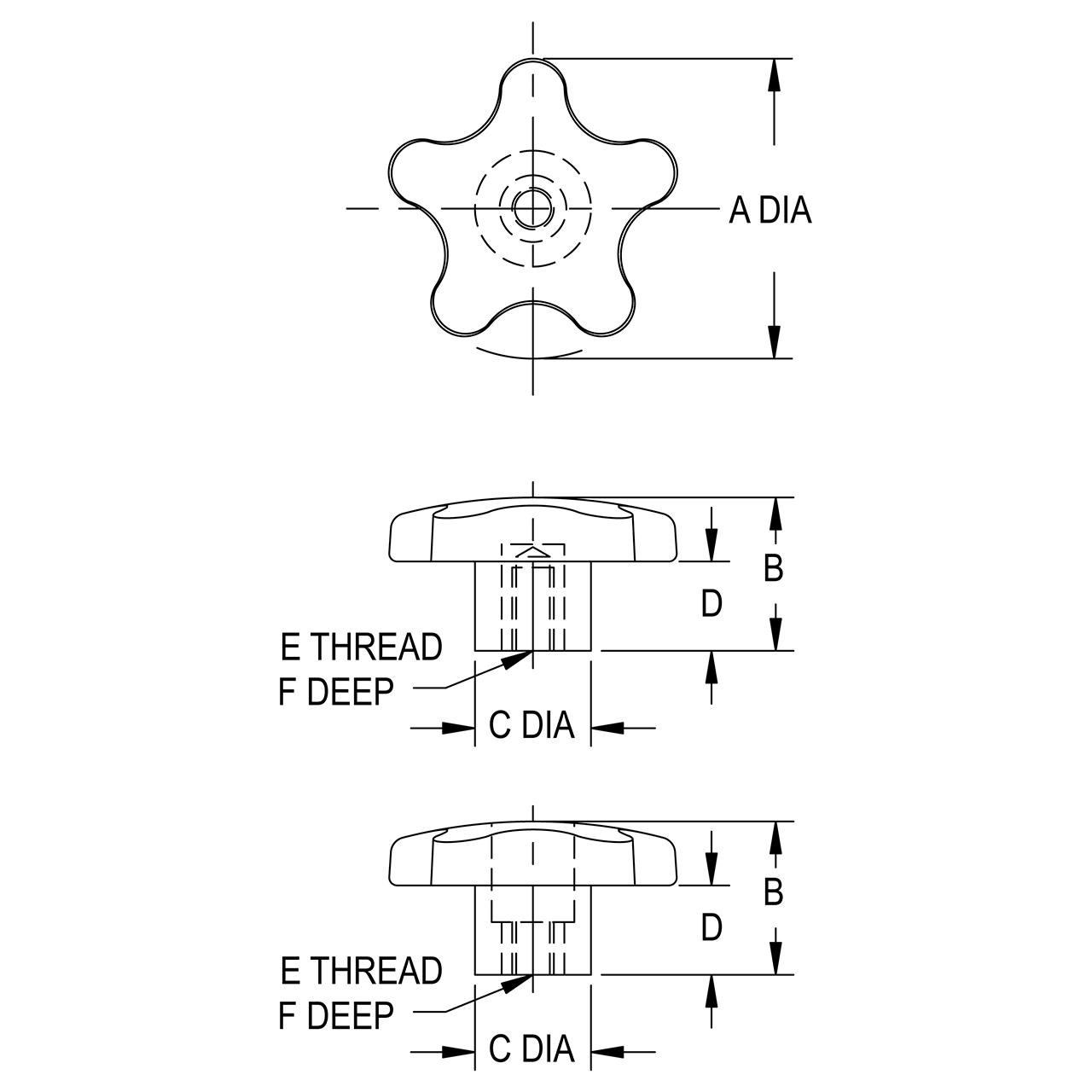

Parts Specification
| Part Number | A DIA | B | C DIA | D | E THREAD | F THREAD DEPTH |
| CL-642-SK-PACKOF2 | 2-1/4 | 1 | 7/8 | 1/2 | 5/16-18 | 5/8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
5/16-18"
Diameter (Inch):
2-1/4"
Diameter (Decimal Inch):
2.2500"
Diameter (mm):
57.15mm
