Round Locating Pins

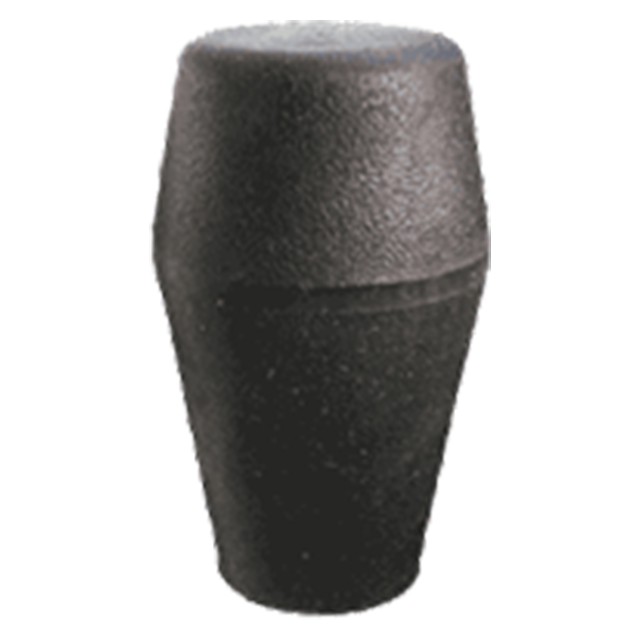

Attractive square-design knob handle, ideal as a lever grip. Made of cushion-grip plastic, a unique material that feels soft to the touch, comfortable yet rugged. Textured non-slip, non-glare finish. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Black cushion-grip plastic (soft touch, matte finish, rugged, excellent impact resistance, operating temperatures to 150°F, excellent gripability even when wet or oily, absorbs vibration) | - | Molded-in Brass Insert | Yes | Yes |

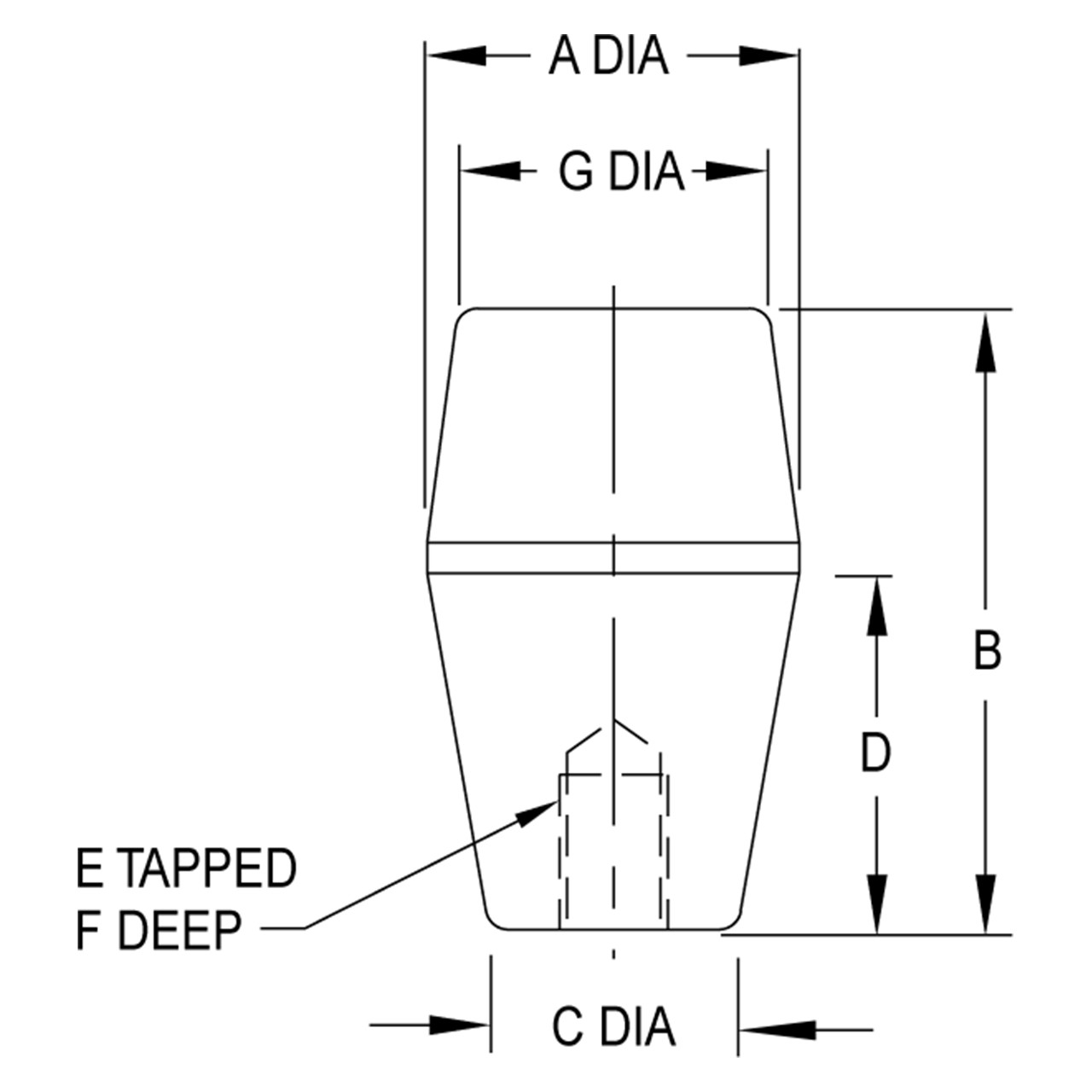

Parts Specification
| A Diameter (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | E Thread (Inch) | F (Inch) | G Diameter (Inch) |
| 1-1/2" | 2-1/2" | 15/16" | 1-1/2" | 1/2-13" | 5/8" | 1-1/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
