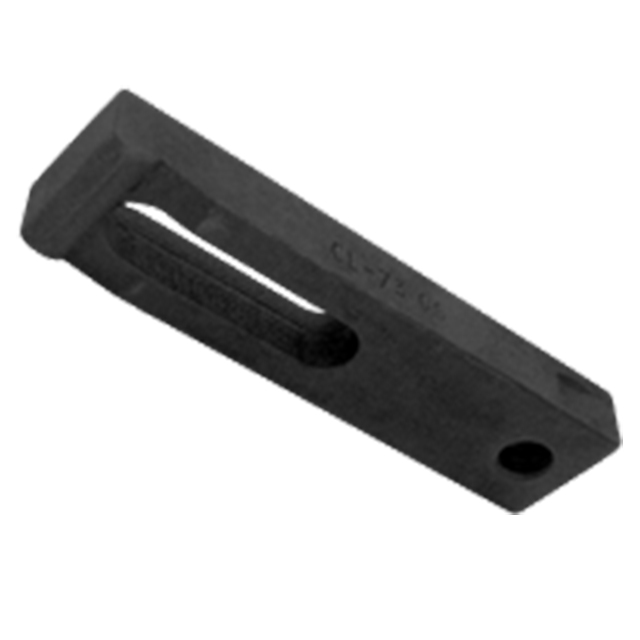

Carr Lane CL-70-CS | 1/2-13 Size Tapped-Heel Clamp Strap

$20.39
Brand:
Carr Lane
Size:
1/2-13"
SKU:
50013639
UPC:
Weight:
0.59 LBS
Shipping:
Calculated at Checkout

Tapped-Heel Clamp Straps

Heavy-duty steel version of the Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.

Application Information

Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw.

Material

MaterialHeat TreatFinishDFARSRoHS
1018 SteelCarburized HardenedBlack OxideYesYes

Parts Specification

A Stud SizeBCDEFGHJK Thread
1/2-135/81-1/43-1/21-13/3215/1613/321/217/321/2-13
