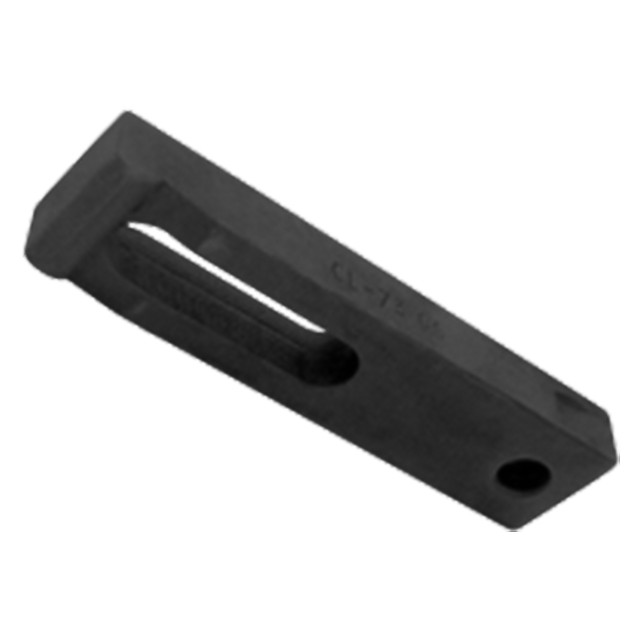

Tapped-Heel Clamp Straps
Heavy-duty steel version of the Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.
Application Information
Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw for use with a slotted guide block, or an adjustable rear support.
Parts Specification
| A Stud Size | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G (inch) | H (inch) | J (inch) | K Thread |
| 1/2-13 | 5/8" | 1-1/4" | 4-1/2" | 1-29/32" | 1-7/16" | 13/32" | 1/2" | 17/32" | 1/2-13 |
