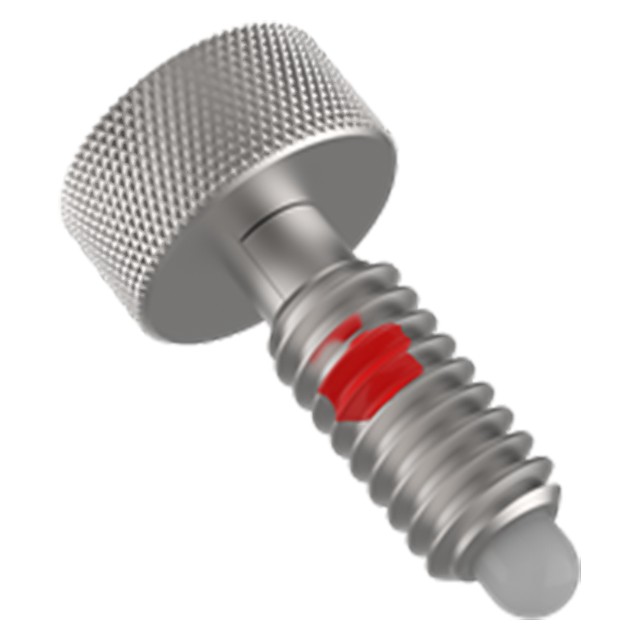

Hand-Retractable Plungers-Knurled Head with Radiused Delrin Plunger
Spring-loaded plunger that locks in retracted position. To lock, pull knurled knob back and turn 90°. This version has a radiused Delrin plunger, which has a slightly larger plunger diameter and lighter spring force. Made in USA.
Application Information
Operation
Pull knob to retract
Turn 90° in either direction to lock
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger | White Delrin 500 | - | - | Yes | Yes |
| Body and Knurled Head | 300-series Stainless Steel | - | - | Yes | Yes |
| Spring | 17-7PH Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter Nominal | B Diameter Actual | C (inch) | D (inch) | E (inch) | F Diameter (inch) |
| 1/2-13 | 1.2 lbs. | 5 lbs. | 5/16 | 0.311 | 1/4" | 7/8" | 3/8" | 1" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread:
1/2-13"
