Lifting Pins (Alloy Steel)

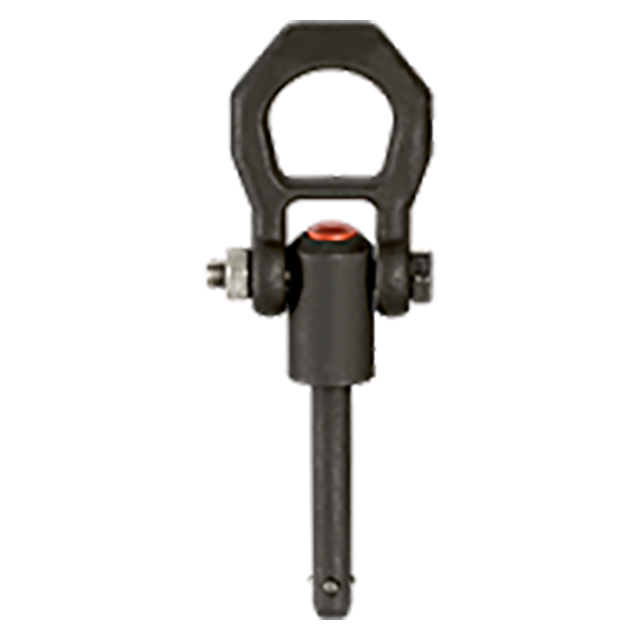

Lifting Pins are single-acting Ball Lock Pins with a solid, one-piece body and four balls for high tension loads. Positive locking until released by pushing the button. Sturdy forged shackle for heavy lifting. The alloy-steel version has a manganese phosphate Finish that provides excellent lubricity and corrosion resistance. Made in Germany.
Technical Information
Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.
Application Information
Material
Shank > Alloy steel, Heat Treated, manganese phosphate Finish. Spindle > Alloy steel, manganese phosphate Finish. Shackle > Alloy steel, Heat Treated, manganese phosphate Finish. Button > Aluminum alloy, red anodized. Cap screw, Nut, and Bushing > Steel, zinc plated clear chromate. Spring > Stainless. Balls > 440C stainless. DFARS and RoHS compliant.
Parts Specification
A Diameter Nominal (Inch) | A Diameter Actual (Inch) | Grip Length (Inch) | B (Inch) | C (Inch) | D (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) | H (Inch) | J | K | L (Inch) | M (Inch) |
1/2" | 0.4970/0.4985" | 3.00" | 0.59" | 0.44" | 1.18" | 0.85" | 1.93" | 1.94" | 1.50" | 2.06 | 1.01 | 1.06" | 0.37" |
