Product Information

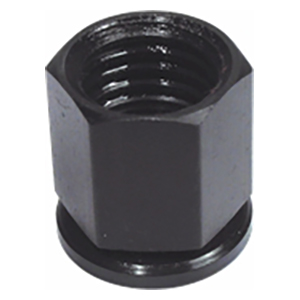

Nut turns freely without pivoting while the contact pad remains stationary, to avoid moving or marring the workpiece. Available with tapped-hole sizes from 1/4-20 to 3/4-10 (M6 to M12 in metric). Made in USA.

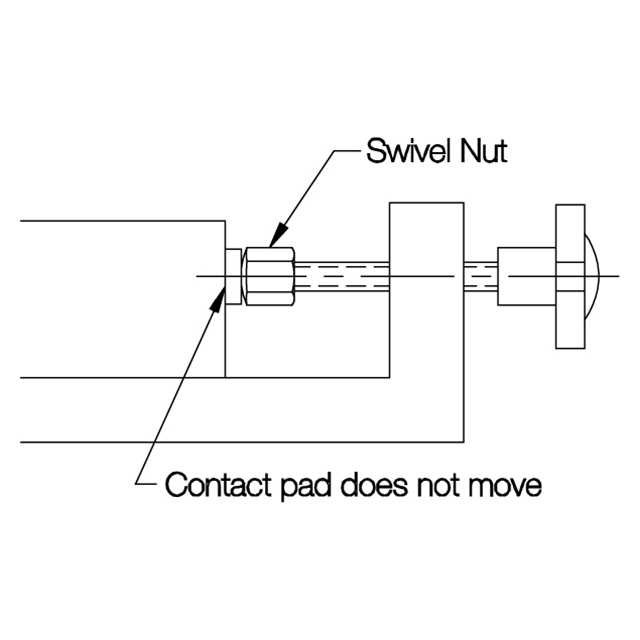

Application Information
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Body | 1215 Steel | - | carburized-hardened Black Oxide | ✔ | ✔ |
| Pad | 1215 Steel | - | Black Oxide Finish | ✔ | ✔ |

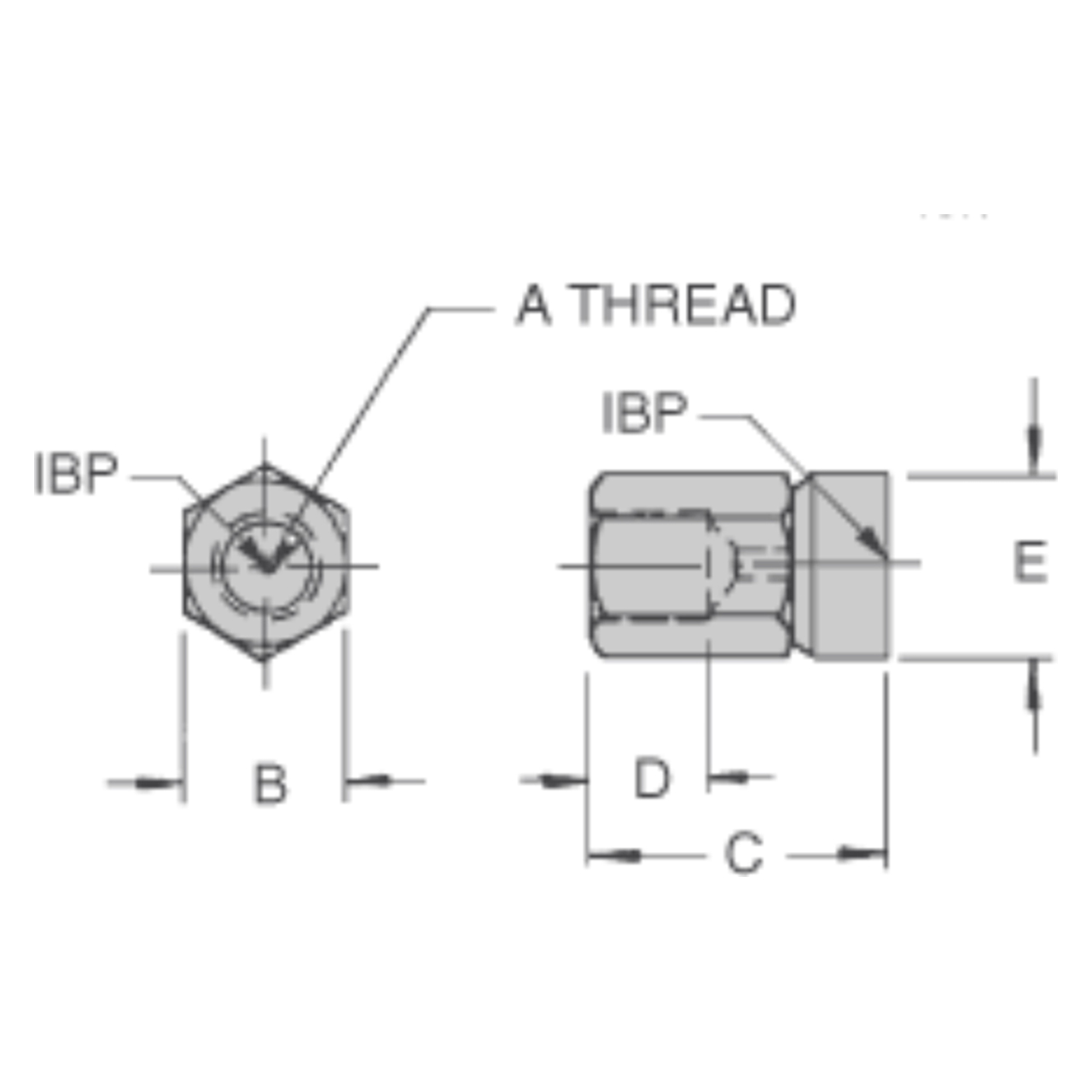

Parts Specification
| Part Number | A THREAD | B | C | D | E DIA |
| CL-8-SN | 1/2-13 | 5/8 | 21/32 | 3/8 | 11/16 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
1/2-13"
Diameter (Inch):
11/16"
Diameter (Decimal Inch):
0.6900"
Diameter (mm):
17.46mm
interval quantity:
1
