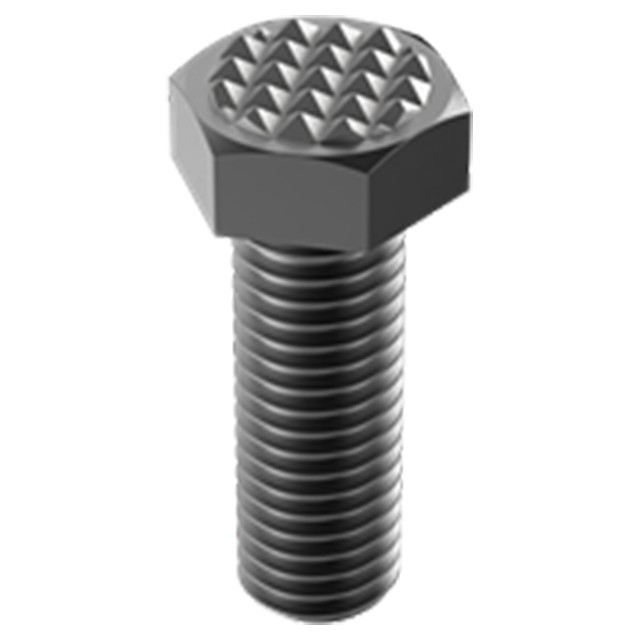

Gripper Contact Bolts
Fully threaded contact bolt with a carbide-tipped gripper head. Can be used as an adjustable support, or as a contact bolt in a clamp. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | Carburized-Hardened | Black Oxide,with brazed carbide gripper | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C Diameter | D (Inch) | E (Inch) | Serrations | Serration Dimensions |
| 1/2-13" | 1 | 5/8" | 23/64" | 3/4" | Fine | 0.125x90° |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Pitch (Inch):
5/8"
Pitch (Decimal Inch):
0.6250"
Pitch (mm):
15.88mm
Thread:
1/2-13"
