Carr Lane CL-841-DLT | 1" Shank Diameter Diamond Locating Pin

Diamond Locating Pins

These precision locating pins are especially useful for workpiece location. One Round Locating Pin and one Diamond Locating Pin are often used together to locate from two holes without binding, because the Diamond Locating Pin is relieved to locate in only 1 axis. The type, with a slip-fit shank and lockscrew slot. Head and shank diameters are concentric to within .0005" TIR. Made in USA. In addition to standard diameters, these pins are also quickly made to order in any special head diameter from .1150" to 1.0400" in .0001" increments.

Locating Principles

When a round pin and diamond pin are used together, the round pin is the primary, 2-axis locator, while the diamond pin is the secondary, 1-axis locator. Diamond pins are relieved to locate only radially around the round pin, avoiding redundant location. This prevents binding, yet still maintains high accuracy.

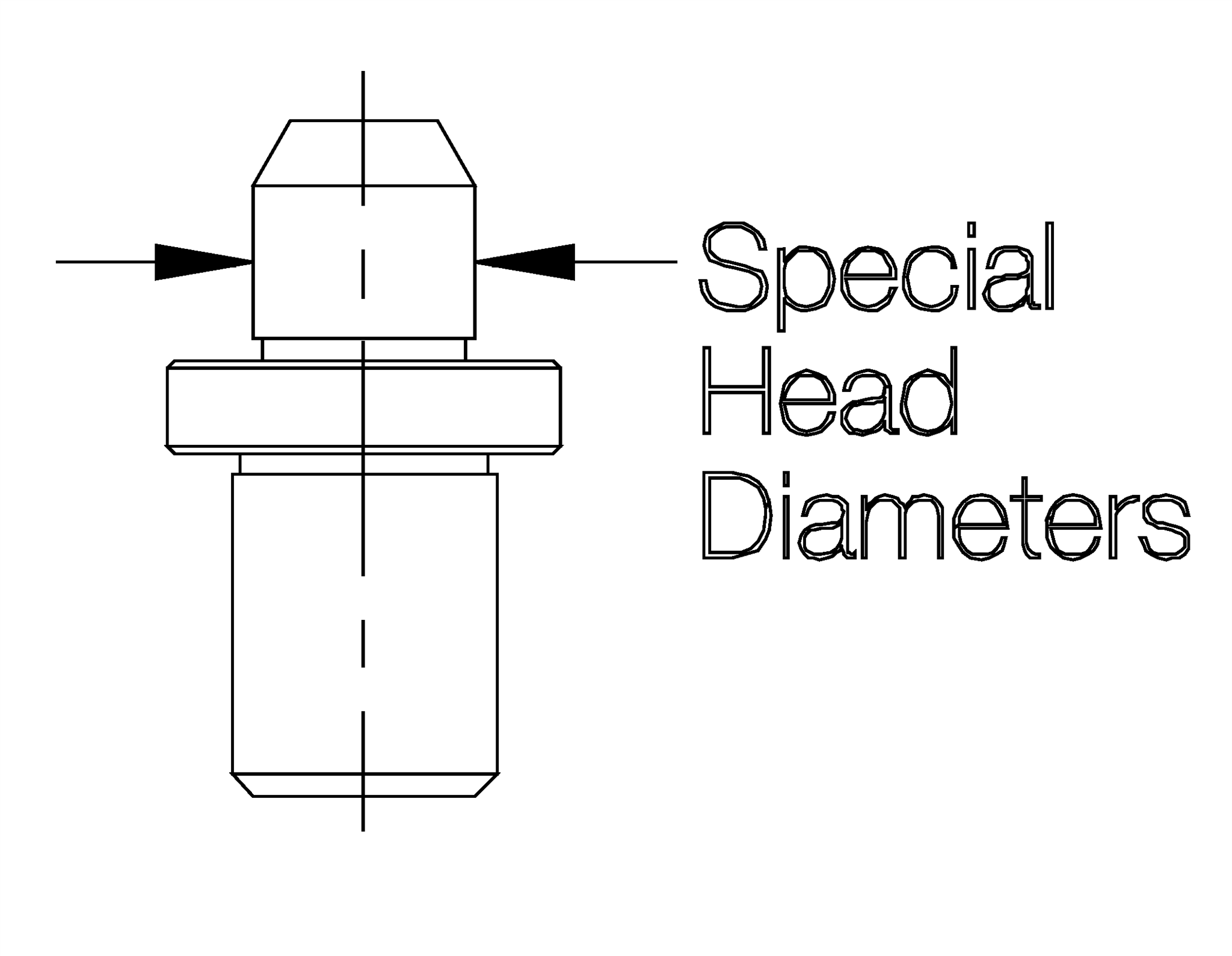

Specials

Pins with a special head diameter (A dimension) are quickly made to four standard shank diameters.

• 5-5/16" shank
• 8-1/2" shank
• 12-3/4" shank
• 16-1" shank

Head diameters are limited to the following ranges:

• 5-0.1150-0.3180
• 8-0.2780-0.5040
• 12-0.4640-0.7540
• 16-0.7140-1.0040

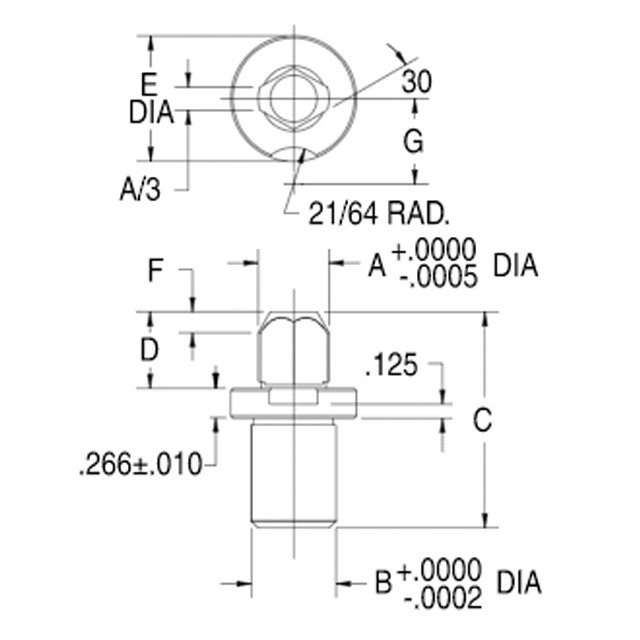

Material

Parts Specification
