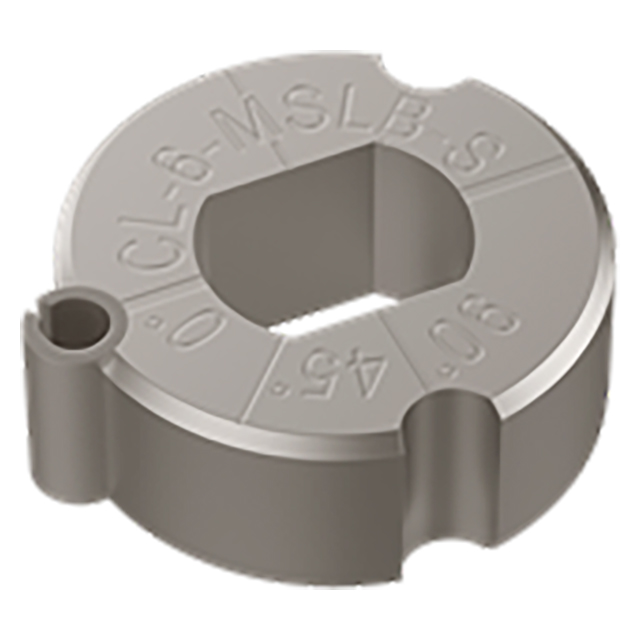

Carr Lane CL-8A-MSLB-S | 1/2" Diameter Multi-Angle Slotted Locator Bushing

Multi-Angle Slotted Locator Bushings

Slotted Locator Bushings can be used with many types of alignment pins and locating pins to align two holes without binding. The multi-angle version can be installed normally (0°) or at a 90° or 45° angle in the same mounting hole without machining a different pin location. Slotted Locator Bushings have a tight tolerance in one direction and full relief in the perpendicular direction. Made in USA.

Application Information

Multi-Angle Slotted Locator Bushings can be installed normally (0°) or at a 90° or 45° angle in the same mounting hole without machining a different pin location.

Installation

To install, first drill and ream the small hole for the roll pin, then bore the large bushing hole to provide .0003-0.0005" press fit. Press in the bushing and roll pin simultaneously for accurate orientation.

Material

Parts Specification
