Product Information

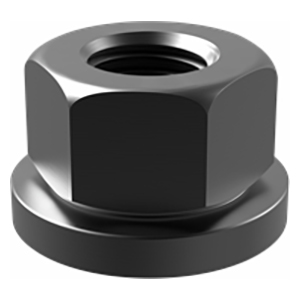

Heavy-hex nut with a flanged face. This large bearing surface prevents damage to the part underneath the nut and provides extra strength. Ideal for clamping over a slot. Fully machined from solid bar stock for extra strength, unlike inferior substitutes. Available in steel with thread sizes from 1/4-20 to 1-1/4"-7 (M6 to M24 in metric), and in stainless steel with thread sizes from #10-32 to 5/8-11. Many inch sizes are also available with fine thread pitch. Made in USA.

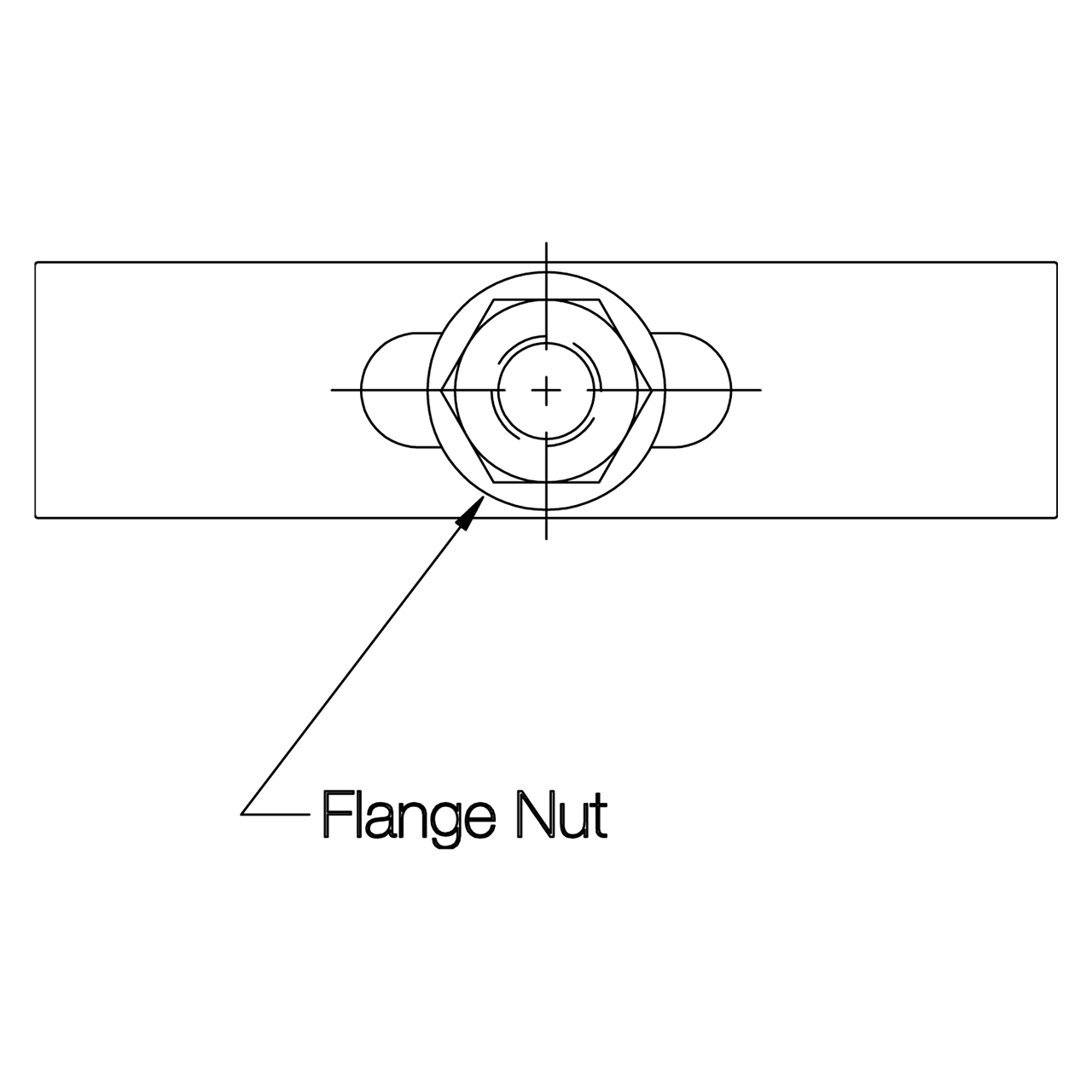

Application Information
Material
| Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 1215 Steel | Carburized-Hardened | Black Oxide | ✔ | ✔ | |
| Stainless Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 300-Series Stainless Steel | - | Passivated | ✔ | ✔ | |

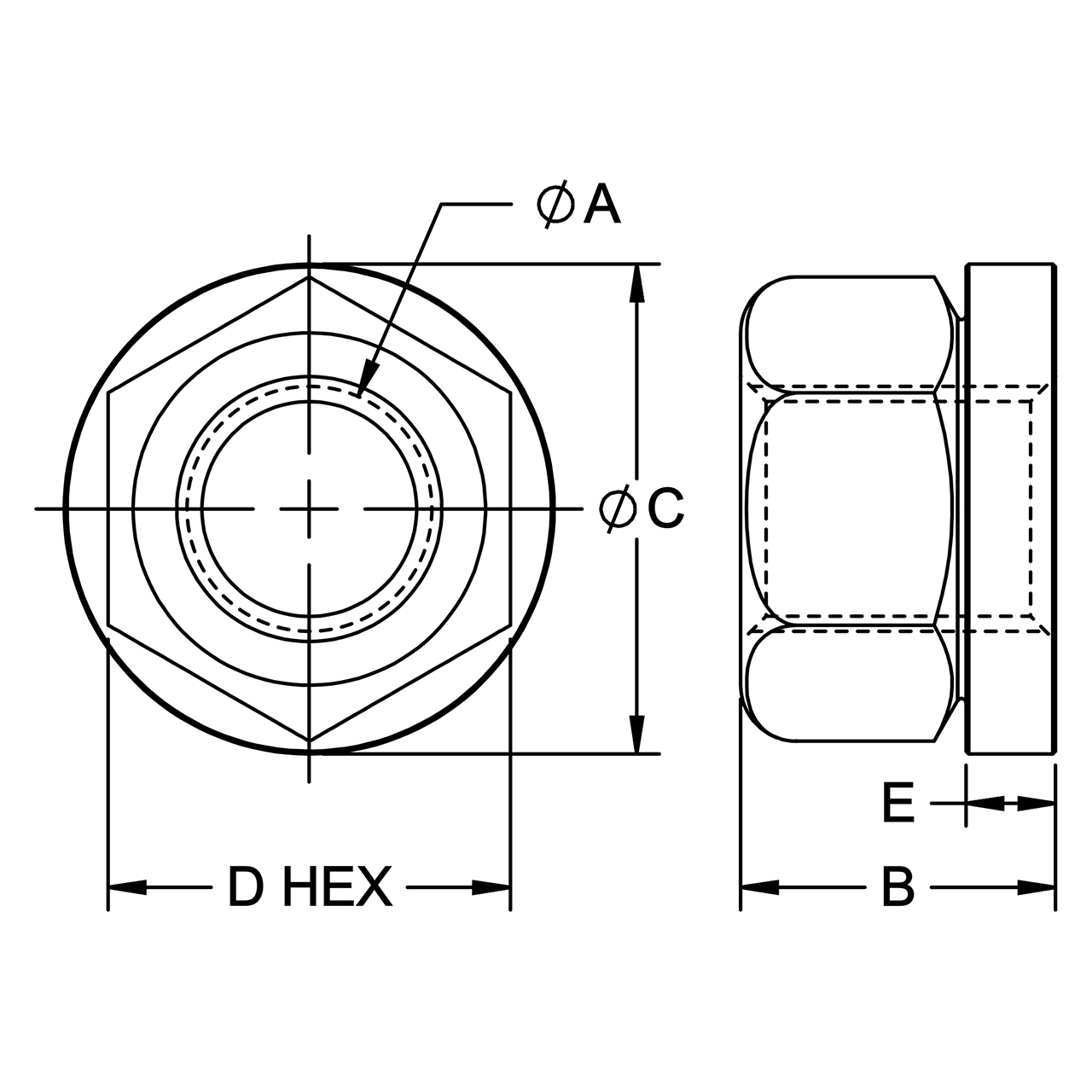

Parts Specification
| Part Number | A THREAD | B | C DIA | D | E |
| CL-9-FN-PACKOF2 | 5/16-18 | 3/8 | 3/4 | 9/16 | .12 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
5/16-18"
Diameter (Inch):
3/4"
Diameter (Decimal Inch):
0.7500"
Diameter (mm):
19.05mm
