Locking T Pins

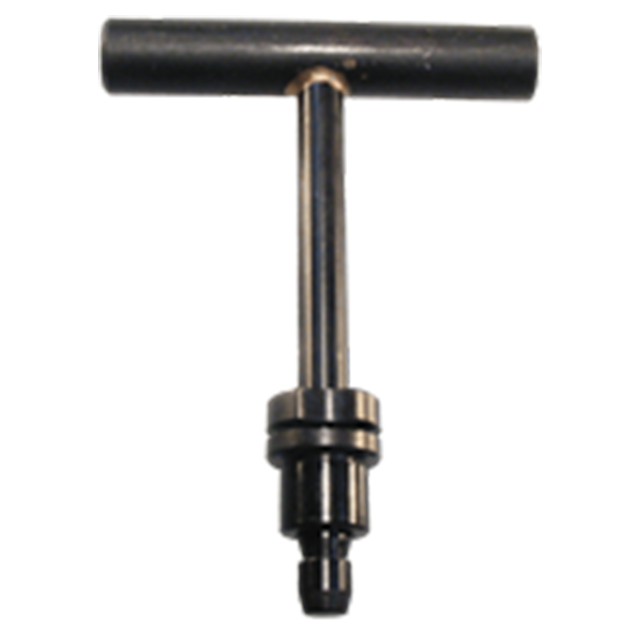

Similar to a standard T PIn, except that the pin body is positively retained in a locking bushing. In fully retracted position, the bushing's spring clip snaps into the pin's radial groove. This holds the pin fully retracted by spring force and positively prevents removal. Spring pressure also holds the pin in intermediate extended positions, an advantage especially if the fixture is turned upside down. Made in USA.
Application Information
In fully retracted position, the bushing's spring clip holds the T Pin fully retracted by spring force and positively prevents removal. Spring pressure also holds the pin in intermediate extended positions.
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
| Locking Bushing | 8620 Steel | Carburized-hardened | Black Oxide |
| Retainer Clip | Spring Steel | - | N/A |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B Pin Length (Inch) | P Bushing Length Under Head (Inch) | P (Inch) | C Diameter (Inch) | D (Inch) | G (Inch) | J | L (Inch) | M (Inch) | N Diameter Nominal (Inch) | N Diameter Actual (Inch) | R (Inch) | S (Inch) | T Pin (included) | Bushing (included) | Lockscrew (included) |
| 3/8" | 0.3740" | 4" | Long" | 0.50" | 5/8" | 3-1/2" | 0.47" | 0.35 | 3-1/2" | 0.20" | 5/8" | 0.6267" | 0.62" | 13/16" | CL-9-LTP INCLUDED | CL-6A-LPB INCLUDED | LS-1 INCLUDED |
