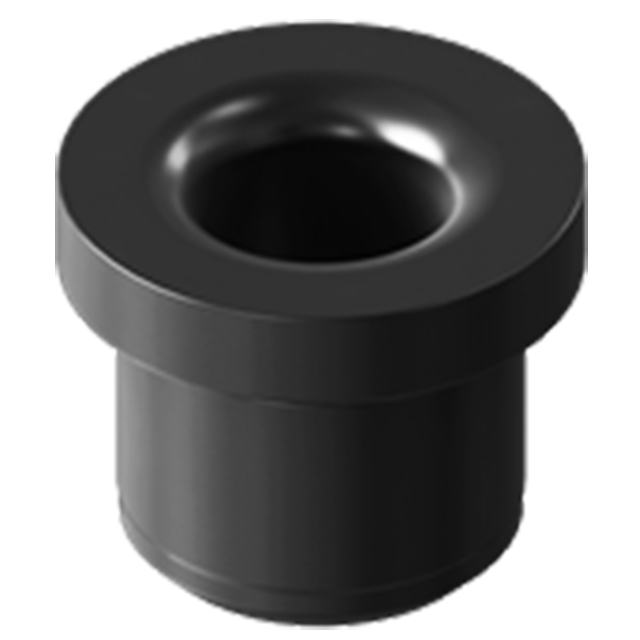

Bushings for Bullet-Nose Dowels
Precision bushing used with a Bullet-Nose Dowel to align two pieces of a fixture. The bushing's ID and OD are concentric to within .0003" TIR. Made in USA.
Application Information
Material
1144 steel, Heat Treated Rc 50-55, black oxide finish. DFARS and RoHS compliant.
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B Diameter (Inch) | C Diameter Nominal (Inch) | C Diameter Actual (Inch) | D (Inch) | E (Inch) |
| 3/8" | 0.3751" | 0.750" | 5/8" | 0.6253" | 1/2" | 0.100" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
3/8"
Diameter (Decimal Inch):
0.3750"
Diameter (mm):
9.53mm
