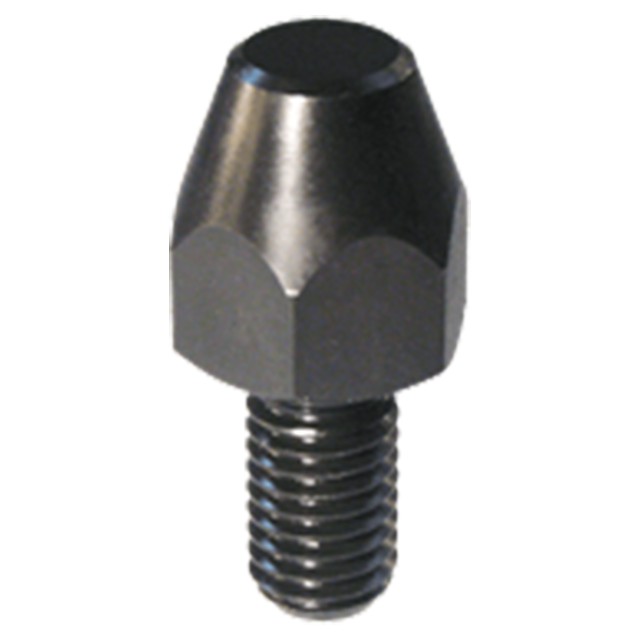

Carr Lane CL-MF16-4808 | M16 Thread x 2mm Pitch 1215 Steel Black Oxide Coated Screw Rest Pad

$38.56 $37.40
(You save $1.16)
Brand:
Carr Lane
Pitch (Inch):
5/64"
Pitch (Decimal Inch):
0.0787"
Pitch (mm):
2.00mm
Thread:
M16
interval quantity:
1
SKU:
50017920
UPC:
Weight:
0.39 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Screw Rest Pads

Precision height locator with a threaded shank for installation in a tapped hole. Cone shape provides a small contact area in combination with a large stable base. Screw Rest Pads are extremely useful as supports, side locator pads, and jig feet. Made in USA.

Application Information

Material

MaterialHeat TreatFinishDFARSRoHS
1215 Steelcarburized-hardenedBlack OxideYesYes

Parts Specification

A ThreadThread Pitch (mm)B (mm)C (mm)D Diameter (mm)E (mm)F
M162mm24mm32mm16mm40mm15°

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
