Cam Edge Clamps-Fixed Base

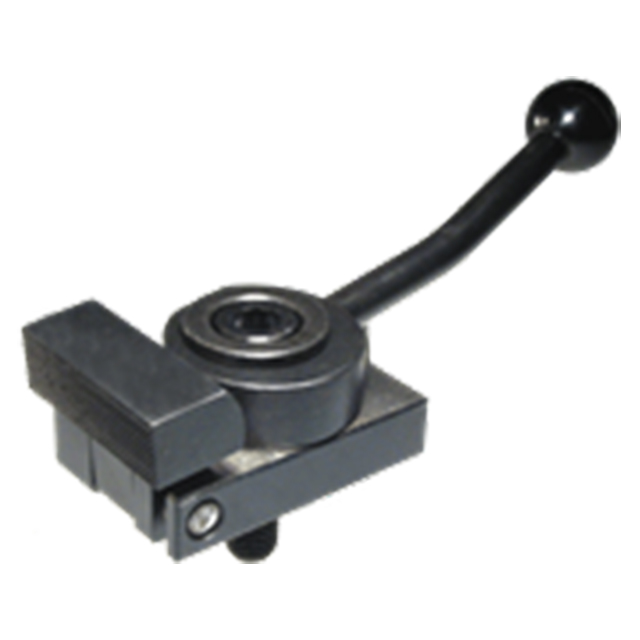

Pivoting-nose edge clamp actuated by a cam handle for fast action. The serrated nose pivots to exert clamping force forward and downward at the same time. Smooth spiral cam locks positively anywhere within its 180° throw. Choice of clockwise or counterclockwise handle movement to clamp.
Application Information
Nose pivots to exert clamping force forward and downward at the same time.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Steel components with hardened wear surfaces | - | Black Oxide | Yes | Yes |
| Ball Knob | Black phenolic plastic | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread (Inch) | Clamping Direction | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K Min (Inch) | K Max (Inch) | L (Inch) | M (Inch) |
| 5/16-18" | Clockwise | 5/32" | 1-1/8" | 3-15/16" | 1-5/8" | 7/16" | 15/16" | 1-3/4" | 11/16" | 7/8" | 1" | 1-1/4" | 3/4" |
