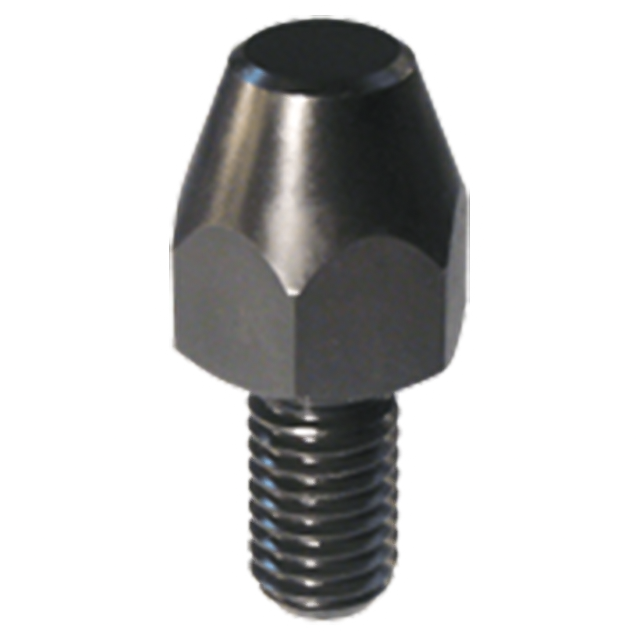

Screw Rest Pads
Precision height locator with a threaded shank for installation in a tapped hole. Cone shape provides a small contact area in combination with a large stable base. Screw Rest Pads are extremely useful as supports, side locator pads, and jig feet. Made in USA.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | carburized-hardened | Black Oxide | ✔ | ✔ |
Parts Specification
| A Thread | B(inch) | C(inch) | D Dia(inch) | E Nominal(inch) | E Actual(inch) | F |
| 5/8-11 | 1" | 1-1/4" | 5/8" | 3/4" | .7500" | 25° |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
