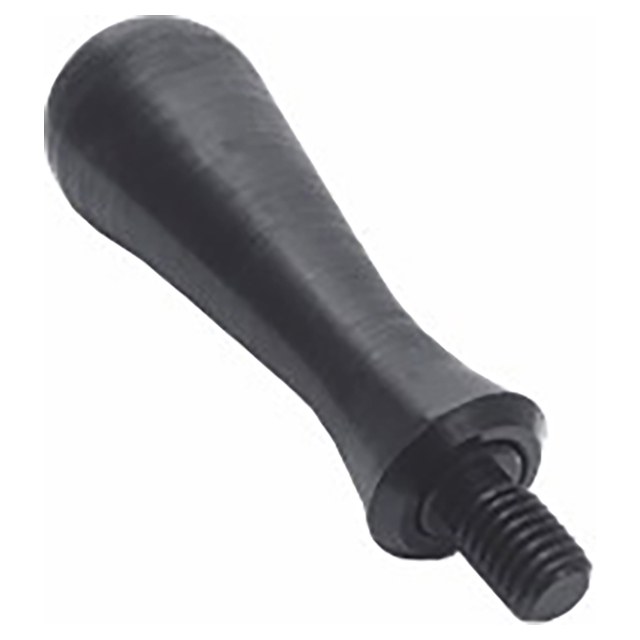

Revolving Handle
Attractive rounded-design handle with a black oxide finish. These Revolving Handles have a removable shoulder screw as an internal bearing. This allows the handle to remain fixed in your hand, for firm gripping while turning a Hand Wheel or crank. Made in USA.
Application Information
Revolving Handles can be used to make custom crank handles
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Yes | Black Oxide | Yes | Yes |
| Shoulder Screw | High-Carbond Steel | Yes | Black Oxide | Yes | Yes |
Parts Specification
| Handle Size | A (mm) | B (mm) | C Thread | Thread Pitch (mm) | D Diameter (mm) | E Diameter (mm) |
| Size 2 | 51mm | 11mm | M6 | 1mm | 21mm | 19mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
