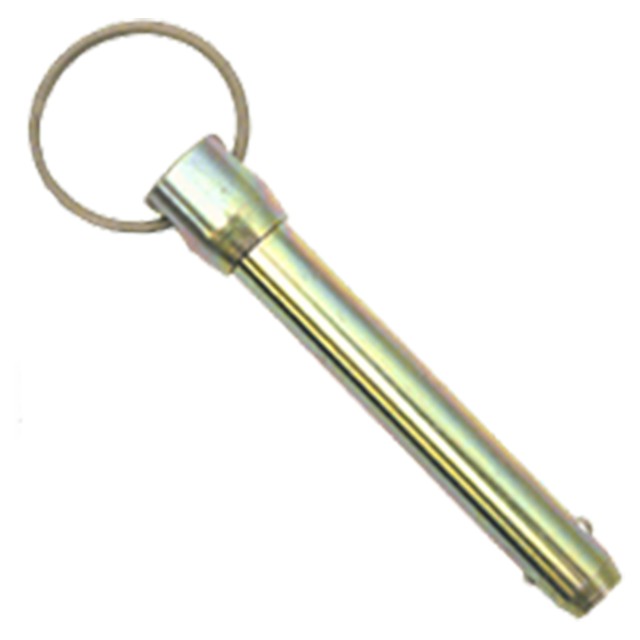

Carr Lane CLM-10-DEP-30-S | 10mm Diameter x 30mm Grip Length Detent Pin

$19.27
Brand:
Carr Lane
Diameter (mm):
10.00mm
Grip Length (mm):
30.00mm
Grip Length (Decimal Inch):
1.1811"
Grip Length (Inch):
1-3/16"
Diameter (Decimal Inch):
0.3937"
Diameter (Inch):
25/64"
SKU:
50013237
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Detent Pins

Quick-release alignment pin with a solid shank and spring-loaded locking balls. The integral head provides exact grip-length tolerance. Locking balls hold the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA.

Technical Information

Locking balls hold the pin in place by spring force. Simply push the pin to insert, and pull to remove. 3/16"-diameter pins have only one locking ball instead of two due to their small size.

Optional Cable

To order pins with a standard cable assembly attached (Cable Assembly CL-82-KA-12.0-#2 cable size, 12" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number. For an optional 10" nylon lanyard, add "-NL" to the part number.

Material

Stainless Steel:

Shank > 300-series Stainless Steel. Spring > 17-7PH or 302 Stainless Steel. Ring > 302 Stainless Steel. Balls > 440C Stainless Steel. DFARS and RoHS compliant.

Parts Specification

A Diameter Nominal (mm)A Diameter Actual (mm)Grip Length (mm)B (mm)C (mm)D Diameter (mm)E Diameter (mm)F (mm)
10mm9.95mm30mm11.45mm9.90mm12.7mm25.5mm14.3mm
