Forged Adjustable Clamps

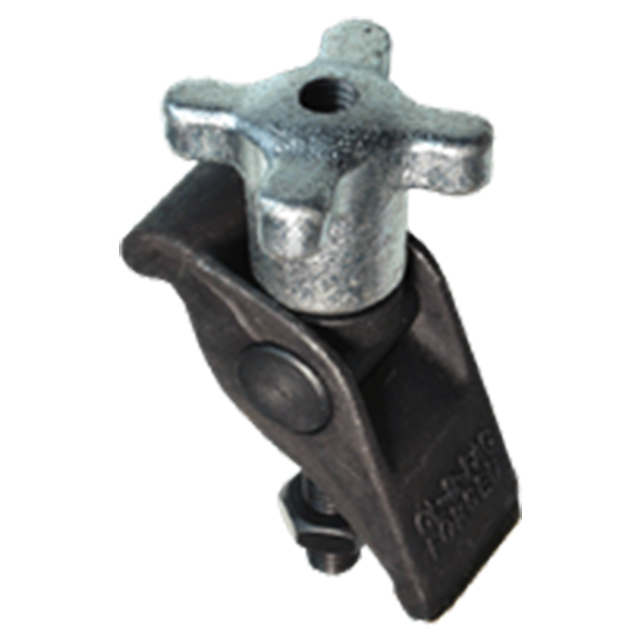

Rugged forged steel pivot clamp. Provides instant height adjustment without blocks or shims. All-in-one construction allows quick setup and eliminates lost clamp pieces. Turn clamp 90° in either direction for loading clearance. Removable brass heel protects machine table.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | Forged 1045 Steel | - | Black Oxide | Yes | Yes |
| Clamp Pivot | Mild Steel | - | Black Oxide | Yes | Yes |
| Removable Heel Pad | Brass | - | - | Yes | Yes |
Parts Specification
| Stud Size | Thread Pitch (mm) | Clamping Range (mm) | B (mm) | C (mm) | D (mm) | H (mm) | J (mm) | K (mm) | L Min (mm) | L Max (mm) | M Min (mm) | M Max (mm) |
| M16 | 2mm | 0 to 76mm | 140mm | 48mm | 35mm | 96mm | 38mm | 70mm | 46mm | 54mm | 75mm | 86mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Size:
M16
