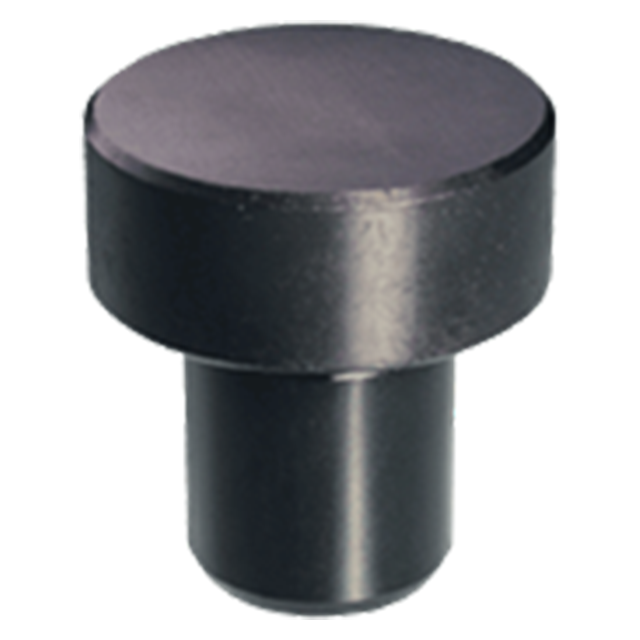

Rest Buttons
Precision height locator with a close-tolerance shank for installation in a reamed hole. Rest Buttons are extremely useful as supports, side locator pads, and jig feet. Made in USA.

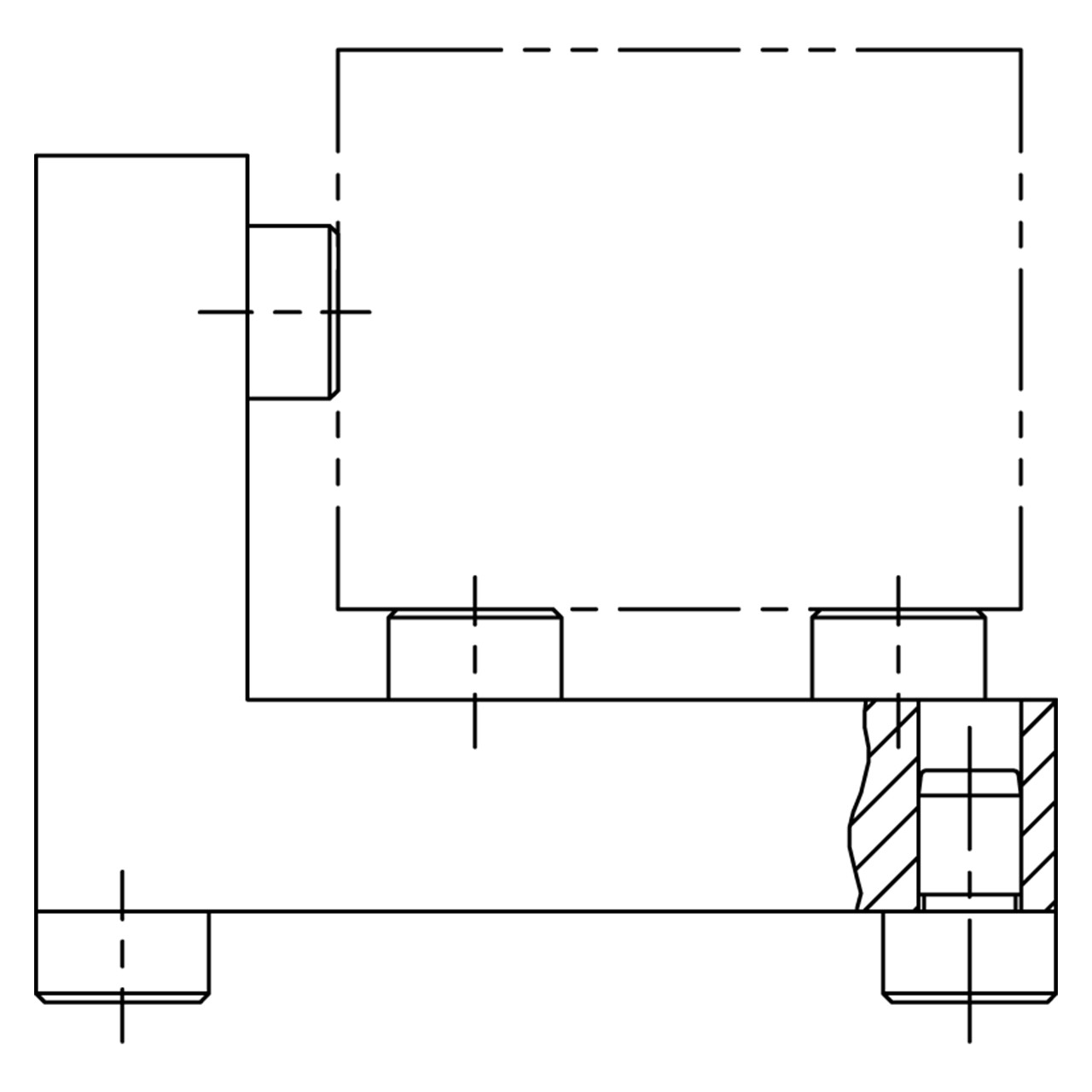

Application Information
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1144 Steel | Heat Treated Rc 40-45 | Black Oxide | Yes | Yes | |

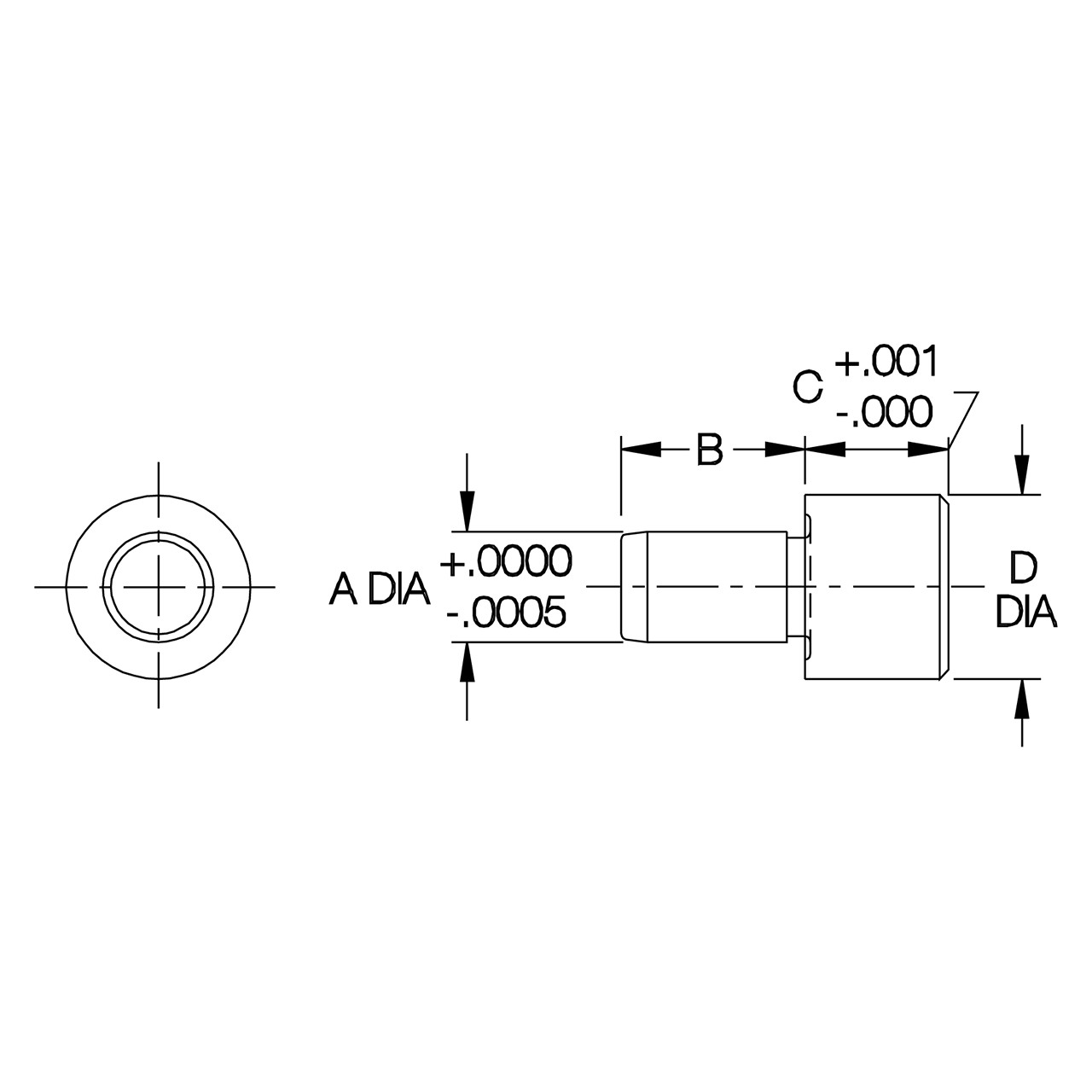

Parts Specification
| A Diameter Nominal (mm) | A Diameter Actual (mm) | B (mm) | C (mm) | D Diameter (mm) |
| 10mm | 10.025mm | 12mm | 10mm | 20mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Carr Lane
Diameter (Inch):
25/64"
Diameter (Decimal Inch):
0.3937"
Diameter (mm):
10.00mm
