Pull Handles-Square Design, Tapped
Attractive, modern-design handle that provides a comfortable grip with good ergonomic features. High-strength thermoplastic provides excellent durability. Textured non-slip, non-glare finish.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Black fiber-reinforced nylon thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 230°F) | - | Molded-in Brass Insert | Yes | Yes |
Parts Specification

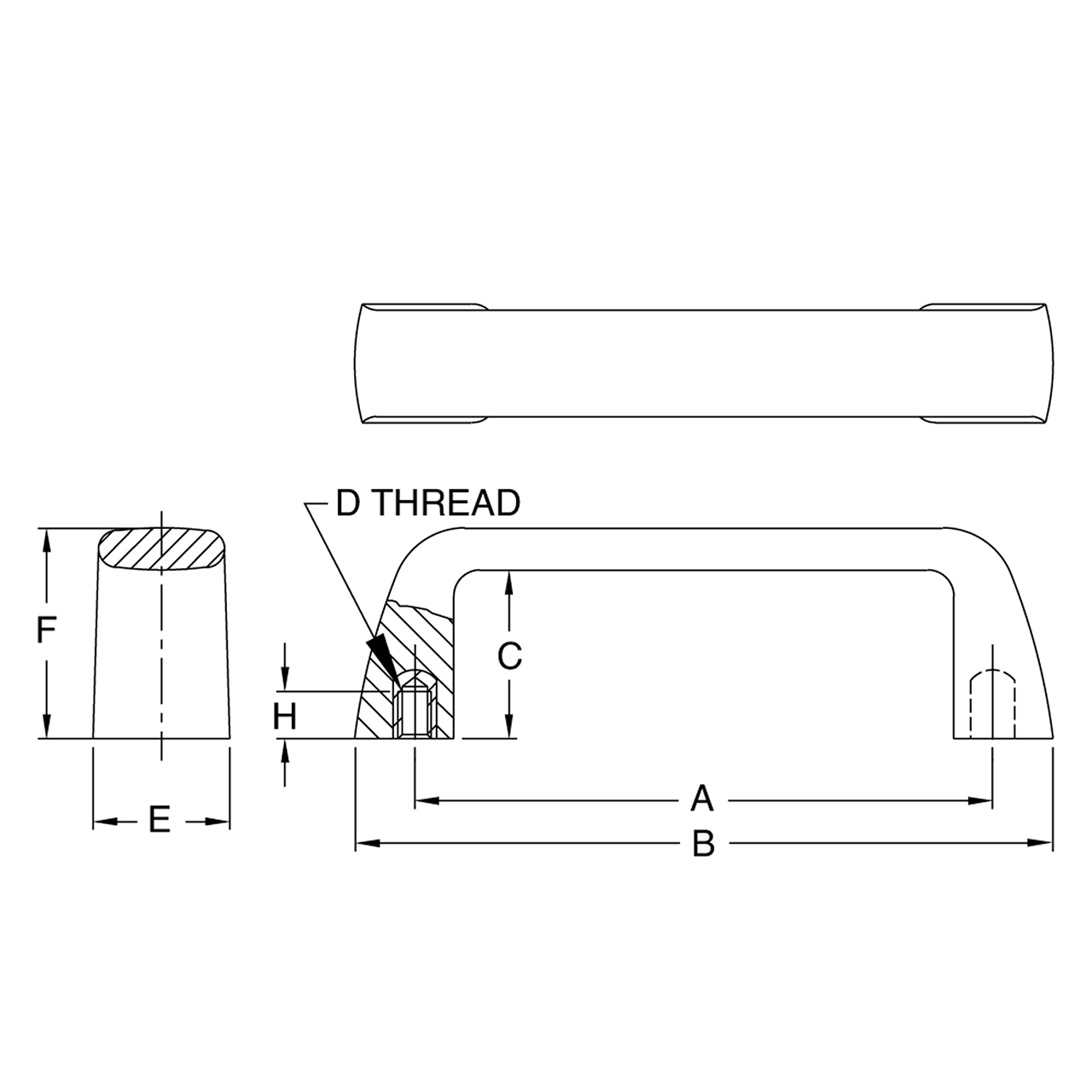

| A (mm) | B (mm) | C (mm) | D Thread (Inch) | Thread Pitch (mm) | E (mm) | F (mm) | H (mm) |
| 105mm | 121mm | 29mm | M6 | 1mm | 26mm | 37mm | 9mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
