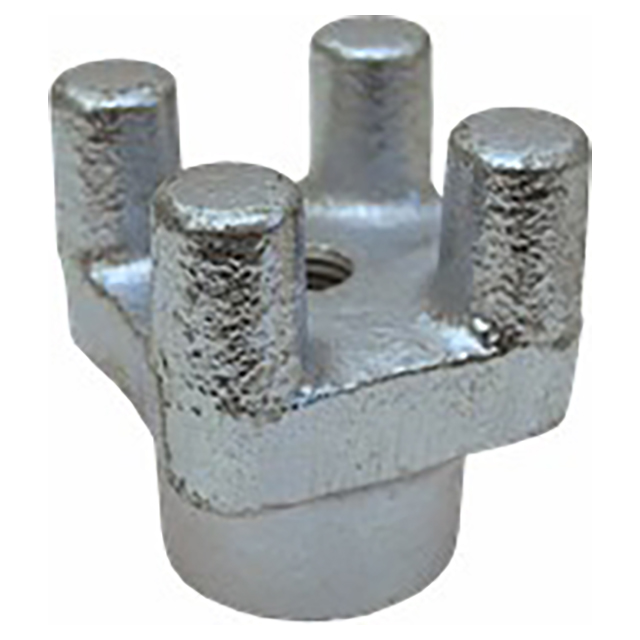

Bar Knobs
Heavy-duty cast iron knob that can be turned easily by hand, then tightened by inserting a bar between the prongs. Made in USA.
Application Information
Material
Cast iron, zinc plated clear chromate. DFARS and RoHS compliant.
Parts Specification
| A (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | F (mm) | G Thread (Inch) | Thread Pitch (mm) | H (mm) |
| 64mm | 60mm | 38mm | 14mm | 25mm | 17mm | M16 | 2mm | 51mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
