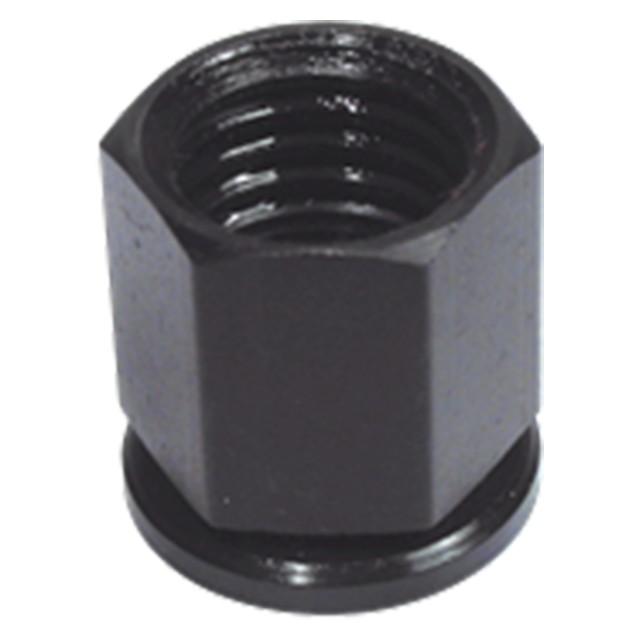

Swivel Nuts
Nut turns freely without pivoting while the contact pad remains stationary, to avoid moving or marring the workpiece. Made in USA.

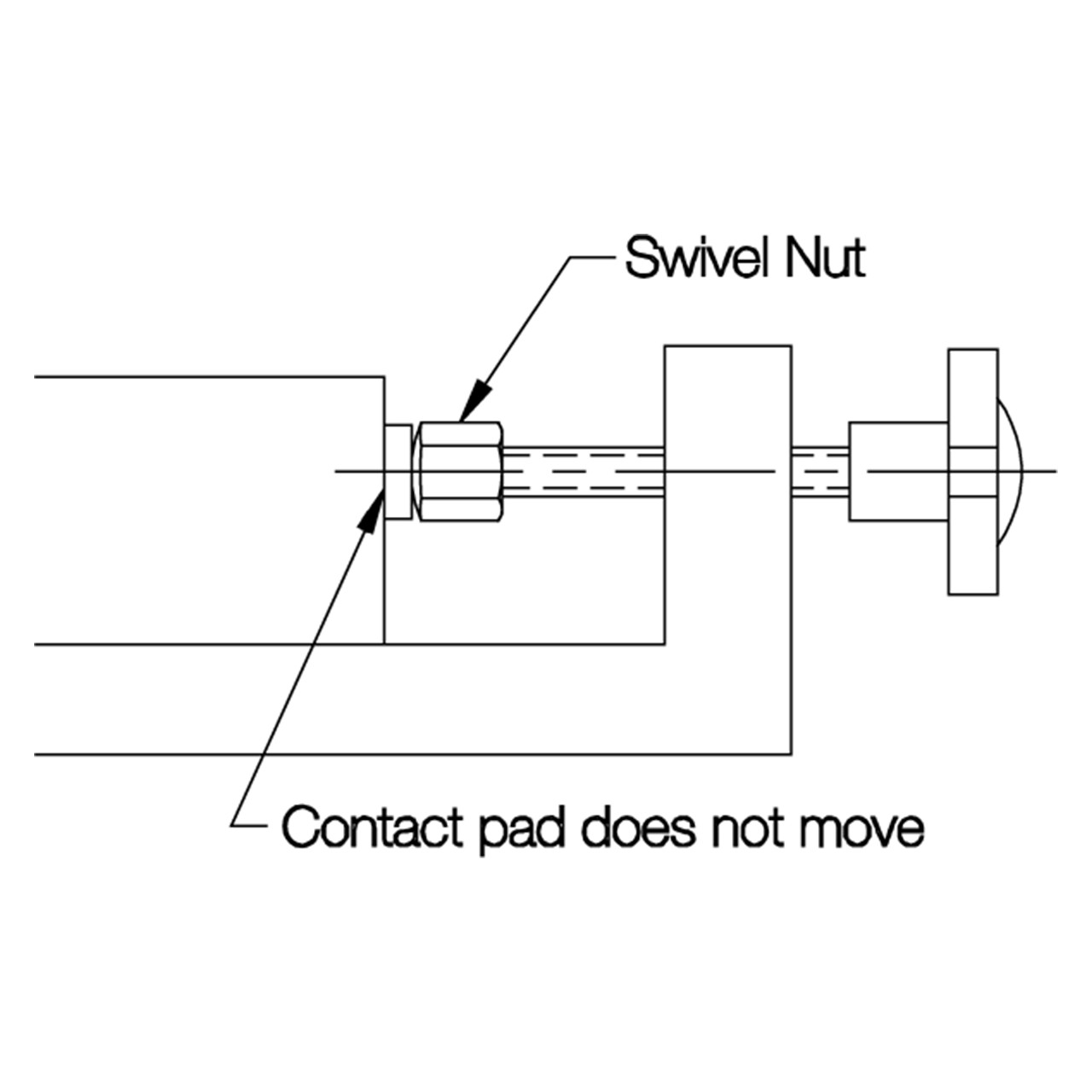

Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | carburized-hardened Black Oxide | Yes | Yes |
| Pad | 1215 Steel | - | Black Oxide Finish | Yes | Yes |

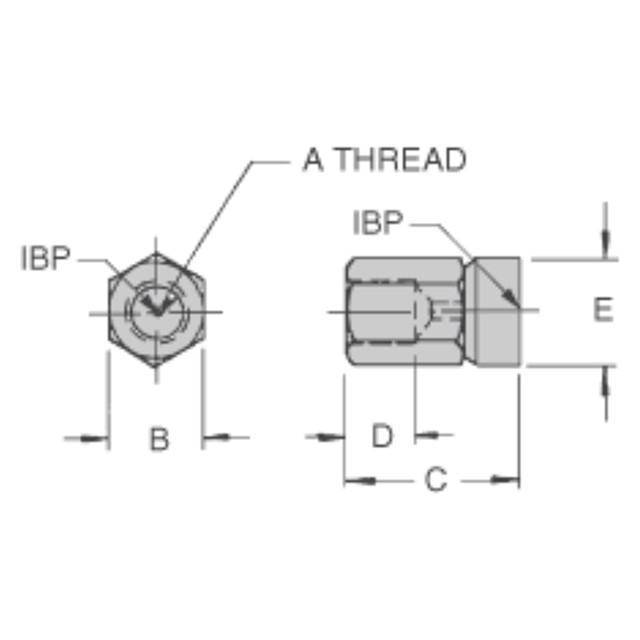

Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) |
| M12 | 1.75mm | 17mm | 17mm | 9.5mm | 18mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
