Carr Lane CLM-12-SPS-1 | M12 Thread x 1.75mm Pitch Spring Plunger

$10.39 $10.08
(You save $0.31)
Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0689"
Pitch (mm):
1.75mm
Thread:
M12
interval quantity:
1
SKU:
50016418
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Spring Plungers-Steel

This standard-length, threaded type has a long stroke and long plunger bearing length for smooth operation. The version has a steel body and a hardened steel plunger nose. Made in USA.

Application Information

Spring plungers can be used to lift parts slightly after machining, for easier unloading.

width=

Internal View

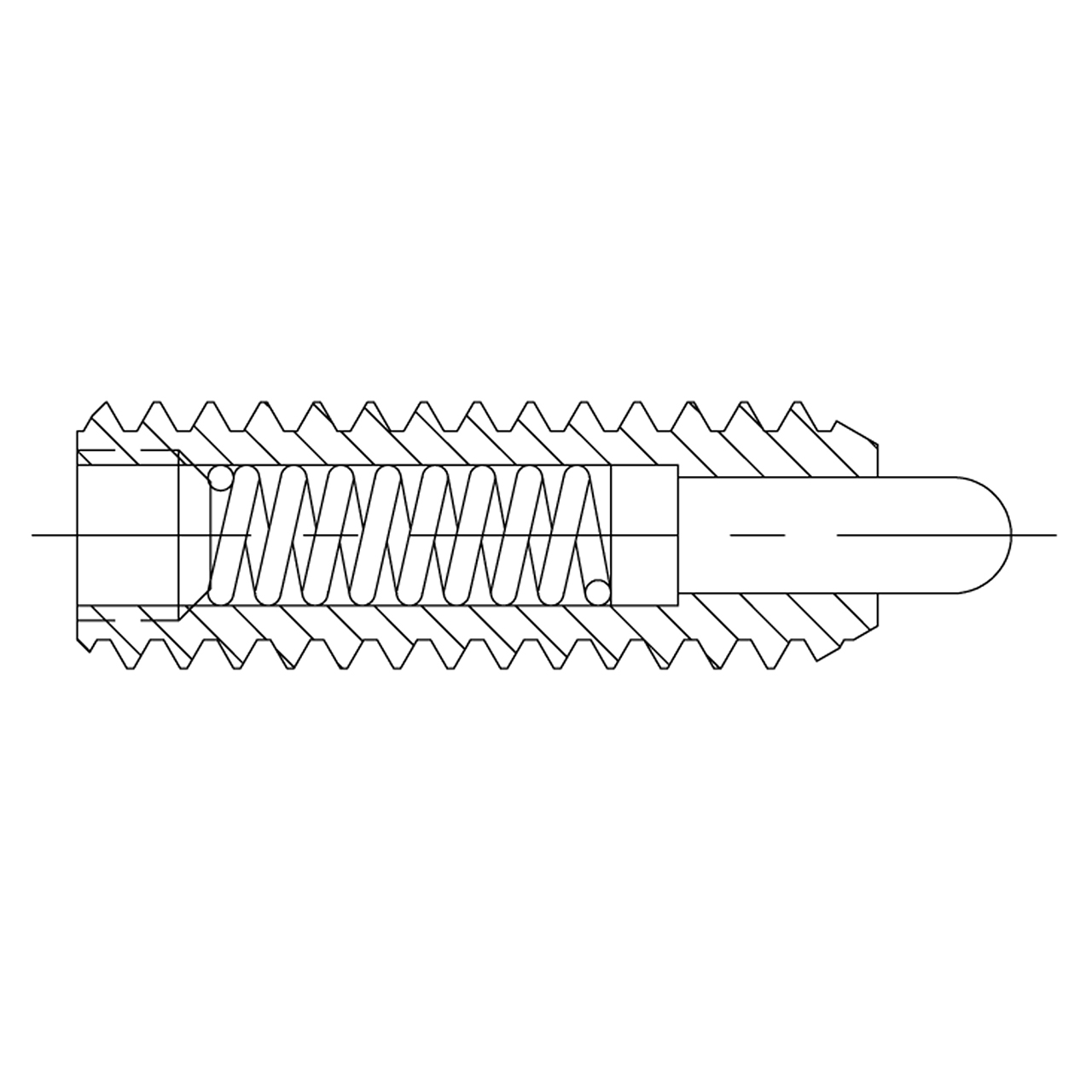

Nose Extended

width=

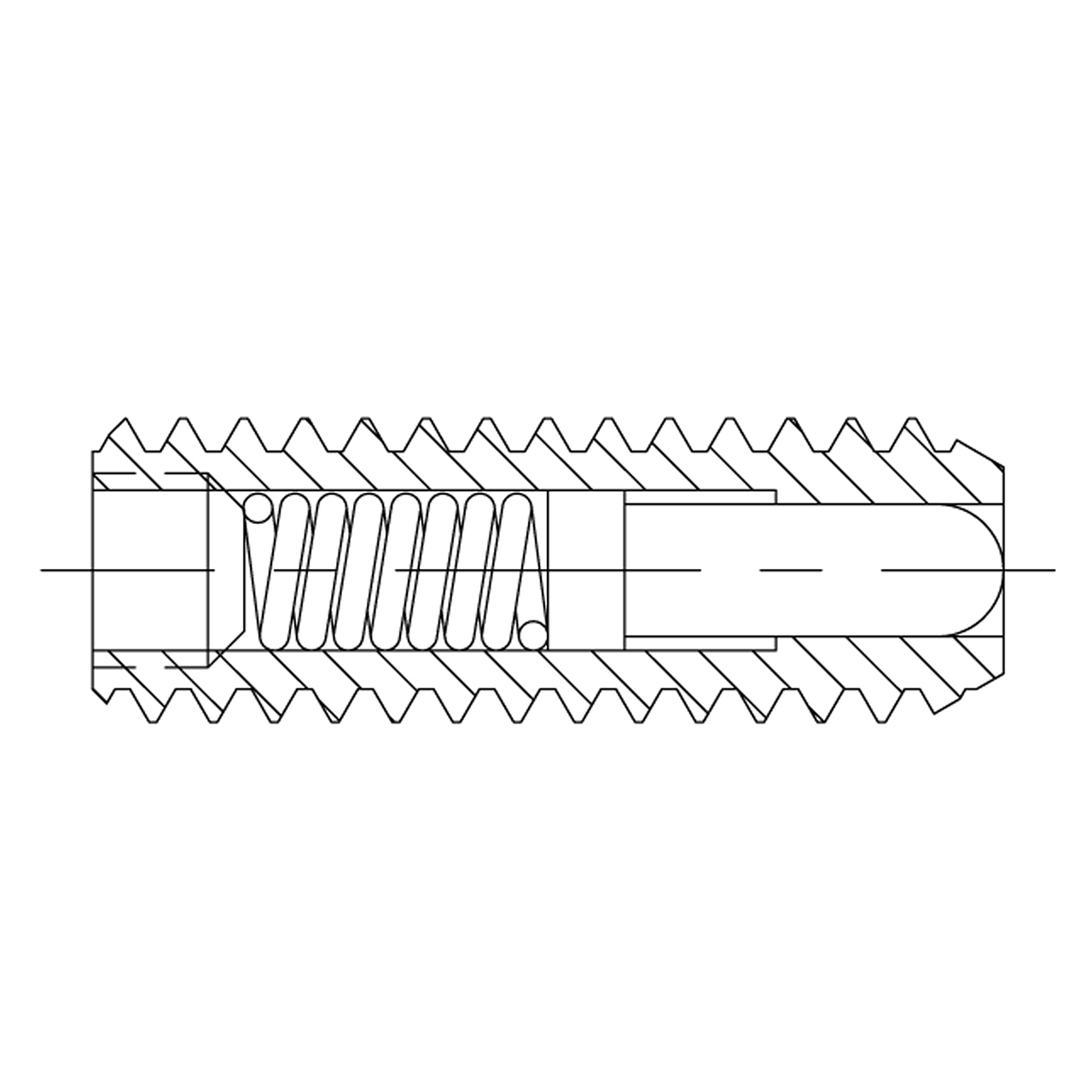

Nose Retracted

width=

Material

ItemMaterialHeat TreatFinishDFARSRoHS
Body1215 steel, black oxide Finish (Metric sizes zinc plated clear chromate)--YesYes
Plunger Nose1215 SteelCarburized-Hardenedblack oxide Finish (heavy force) or zinc plated clear chromate (light force)YesYes
SpringMusic Wire--YesYes

width=

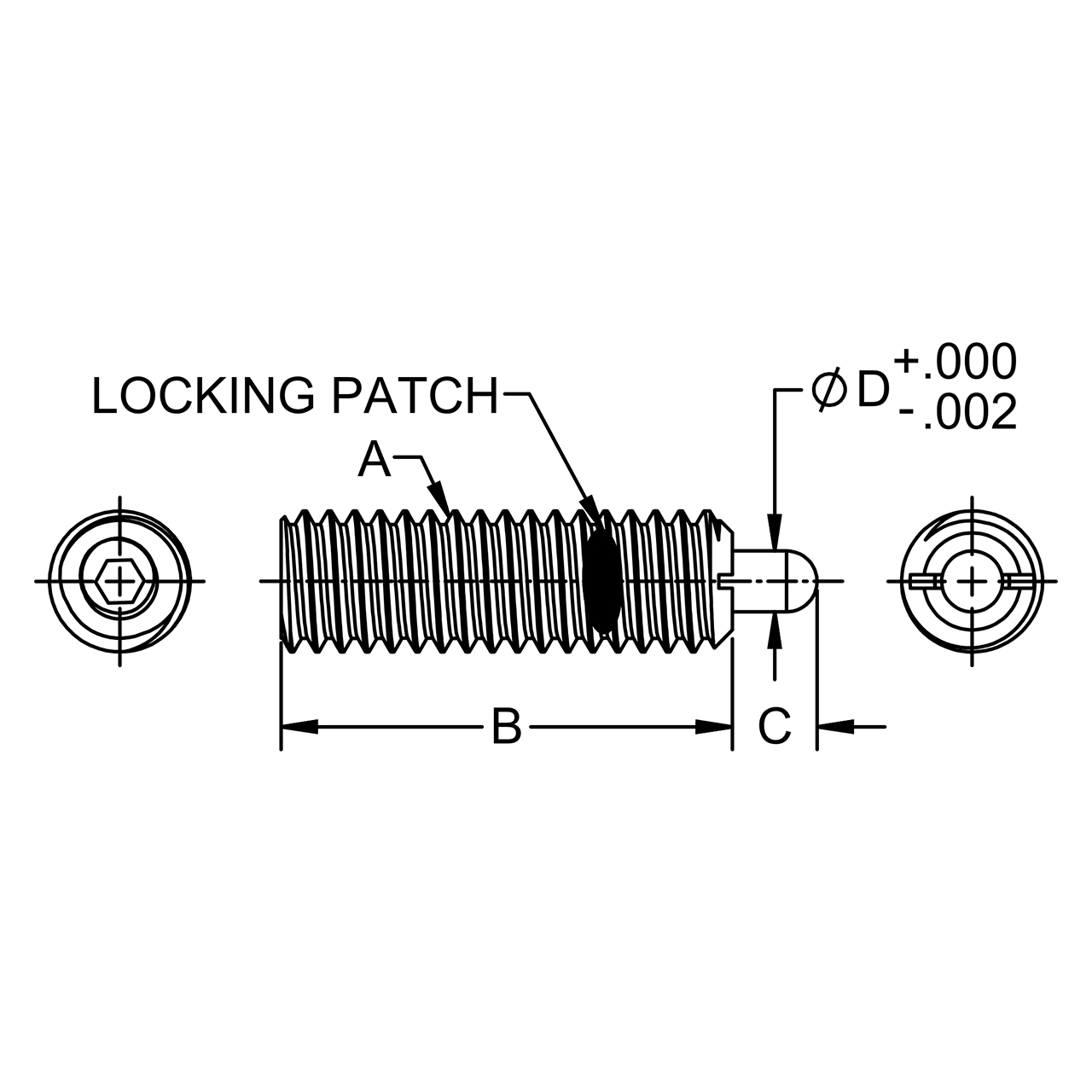

Parts Specification

A ThreadThread Pitch (mm)Initial End Force (n)Final End Force (n)B (mm)C (mm)D Diameter (mm)
M121.75mm12 N41 N32mm6.5mm6.30mm
