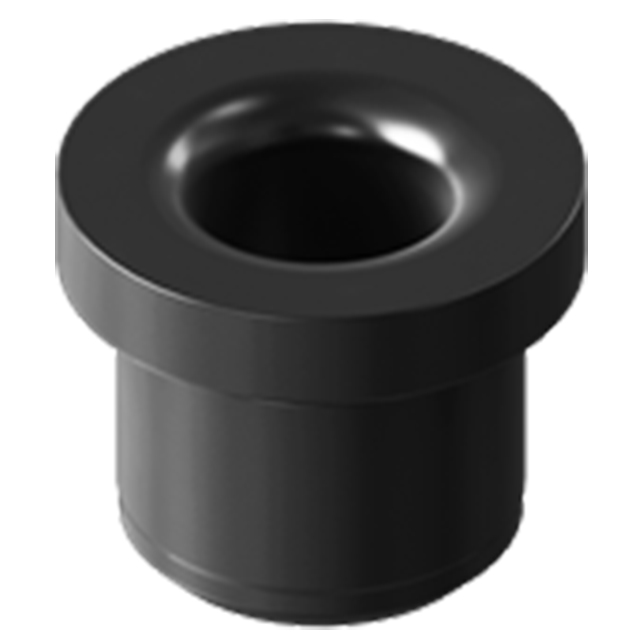

Bushings for Bullet-Nose Dowels
Precision bushing used with a Bullet-Nose Dowel to align two pieces of a fixture. The bushing's ID and OD are concentric to within .0003" TIR. Made in USA.
Application Information
Material
1144 steel, Heat Treated Rc 50-55, black oxide finish. DFARS and RoHS compliant.
Parts Specification
| A Diameter Nominal (mm) | A Diameter Actual (mm) | B Diameter (mm) | C Diameter Nominal (mm) | C Diameter Actual (mm) | D (mm) | E (mm) |
| 12mm | 12.002mm | 22mm | 18mm | 18.011mm | 12mm | 4mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
15/32"
Diameter (Decimal Inch):
0.4724"
Diameter (mm):
12.00mm
