Through Hole Screw Rest Button
Position sensing threaded rest button with a hex machined .005 to .01" over nominal height for finish grinding after installation. Sensor contains .06 through hole allowing air to travel through and detect whether a part is loaded utilizing a sensor. The position sensing rest button also contains a #10-32 tapped hole on the shank for installation of a threaded nipple for easy air line installation. Made in the USA
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | carburized-hardened .015 to .020" deep | Black Oxide | Yes | Yes |

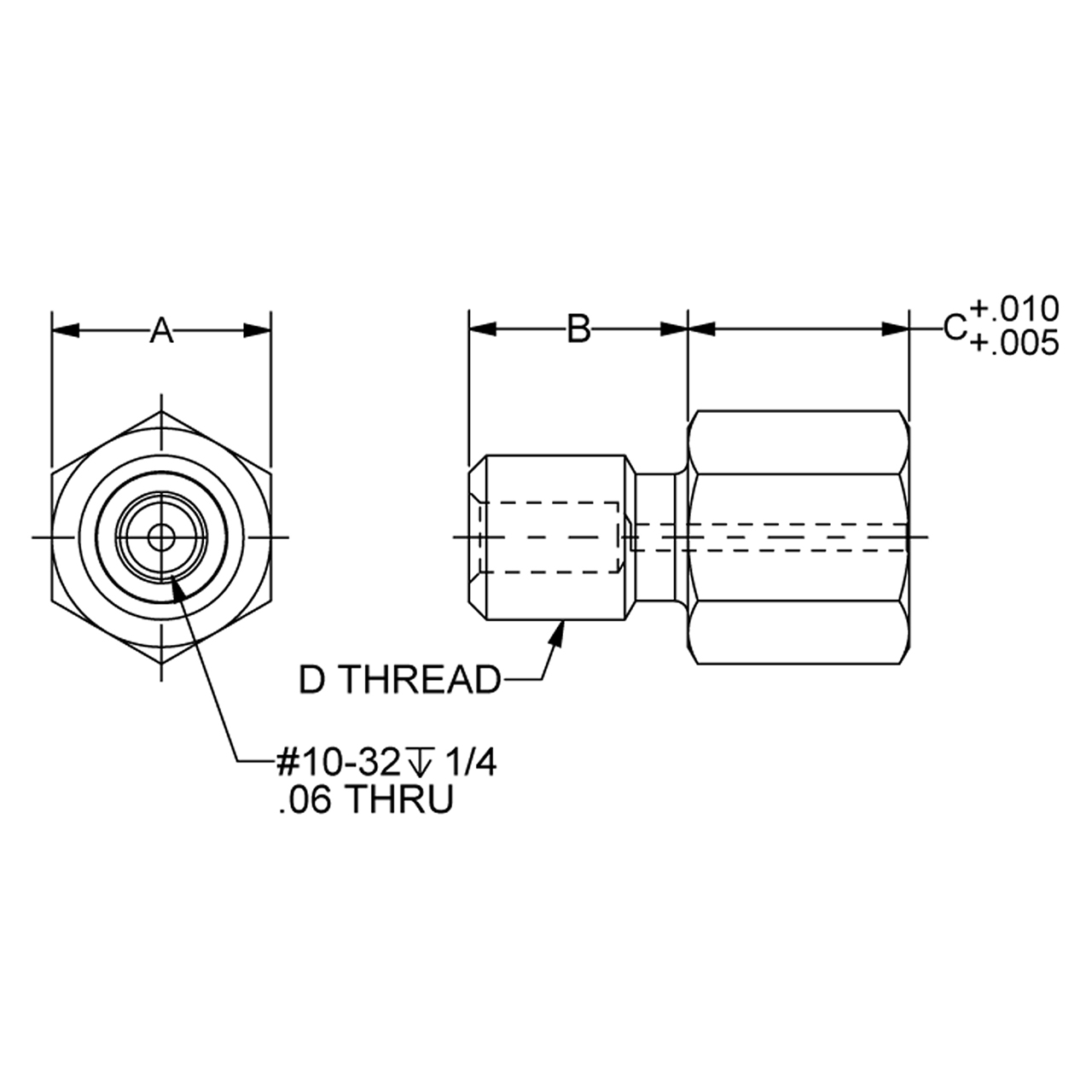

Parts Specification
| A (mm) | B (mm) | C Nominal (mm) | C Actual (mm) | D Thread (mm) |
| 17mm | 16mm | 5mm | 5.13 / 5.26mm | M12 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
