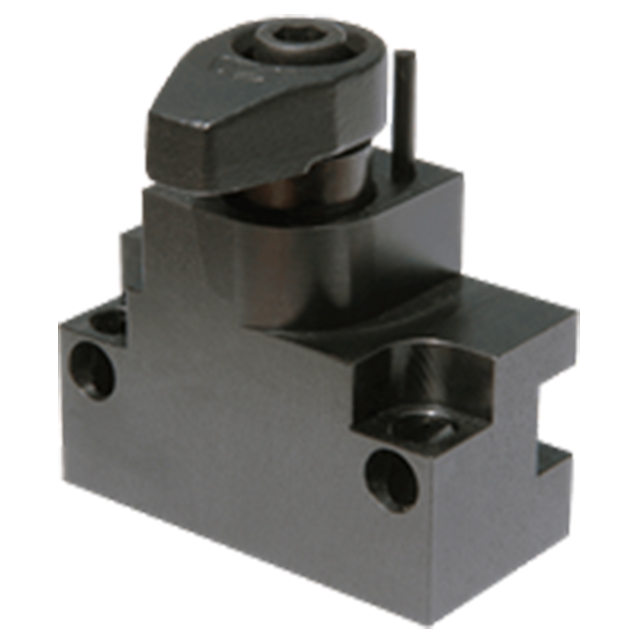

Carr Lane CLM-1240-GSB | M12 Thread x 1.75mm Pitch Gripper Swivel Contact Bolt

$65.92
Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0689"
Pitch (mm):
1.75mm
Thread:
M12
SKU:
50021730
UPC:
Weight:
0.13 LBS
Shipping:
Calculated at Checkout

Gripper Swivel Contact Bolts

Threaded contact bolt with a built-in swivel ball to hold a Round Gripper. This swivel ball, held by a retaining ring, is removable to allow installing any of the nine different Round Gripper types. Gripper Swivel Contact Bolts include a screw for fastening the gripper. This screw also serves as a positive stop to prevent the ball from swiveling too far.Gripper Swivel Contact Bolts can be used as contact bolts, or as supports. Made in USA.

Application Information

Gripper Swivel Contact Bolts are ideal as either fixed or adjustable supports under workpieces with curved or sloped surfaces.

Gripper Swivel Contact Bolts can also be used as screw clamps by turning them with a hex wrench.

Material

ItemMaterialHeat TreatFinishDFARSRoHS
Body and Gripper ScrewSteelCarburized-HardenedBlack OxideYesYes
Swivel Ball440C Stainless SteelHeat Treated-YesYes
O-ringRuber--YesYes
Round GripperSee catalog information for each specific gripper type--YesYes

Parts Specification

A ThreadThread Pitch (mm)B (mm)C Diameter (mm)D (mm)E (mm)F Diameter (mm)G (mm)H (mm)J (mm)
M121.75mm40mm12mm19mm19mm15mm5mm15mm21mm
