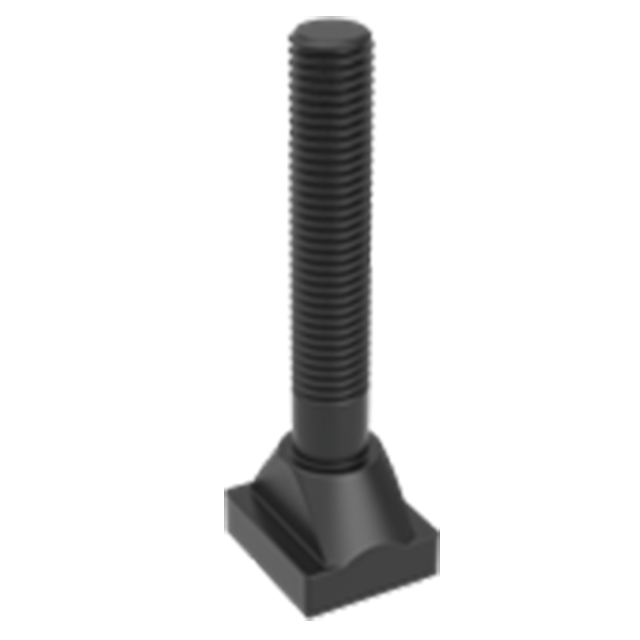

Forged T-Bolts

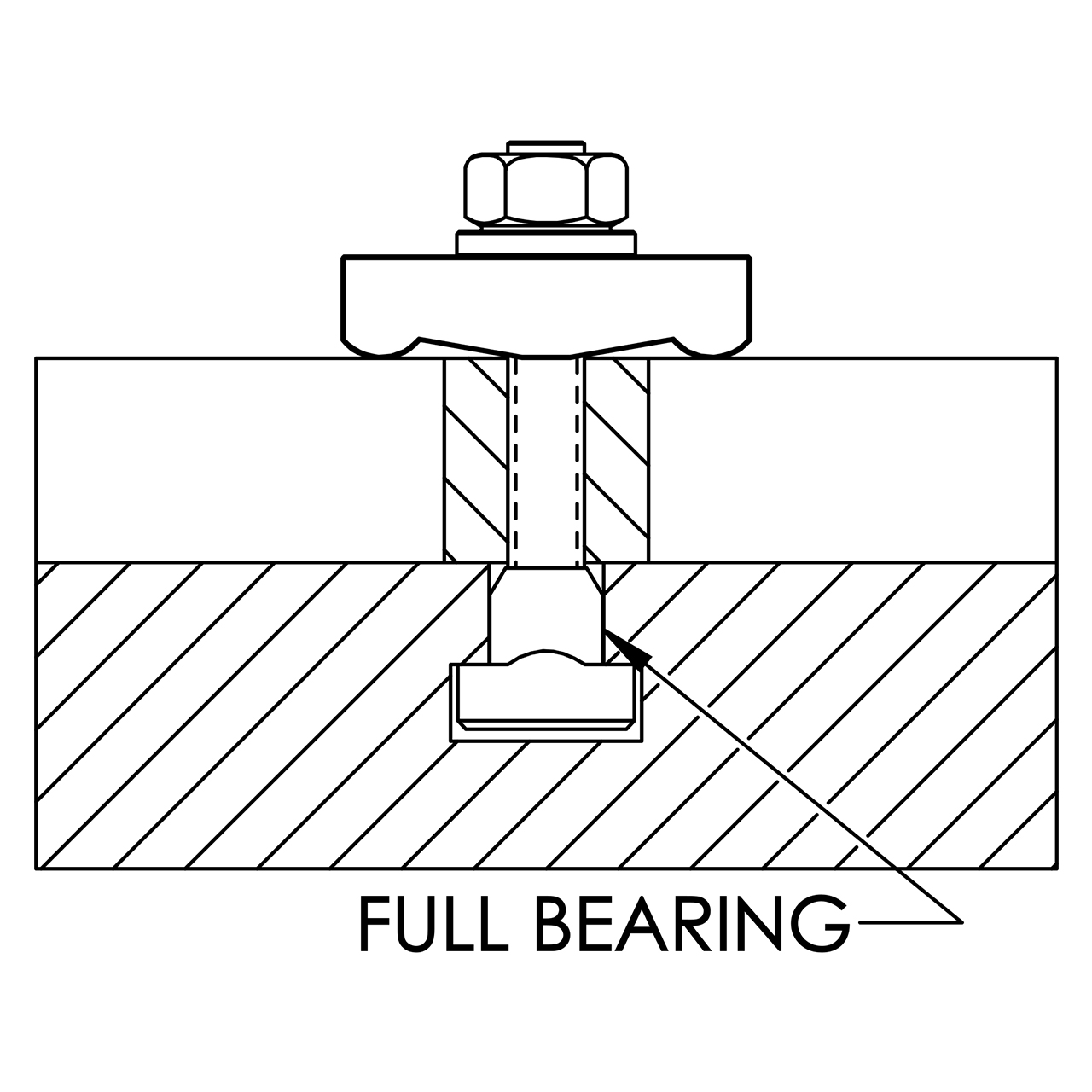

High-quality high-strength forged clamping bolt for T-slotted machine tables. Fully machined flats where the T-Bolt contacts the T-Slot. Provides full bearing with the slot to prevent twisting or jamming. One-piece design can provide a larger diameter stud compared to a T-Nut & Stud combination.
Technical Information
Material
| Material | Heat Treat | Finish |
| Forged Medium Carbon Steel | Grade 8.8, Rc 24-30 | Black Oxide |

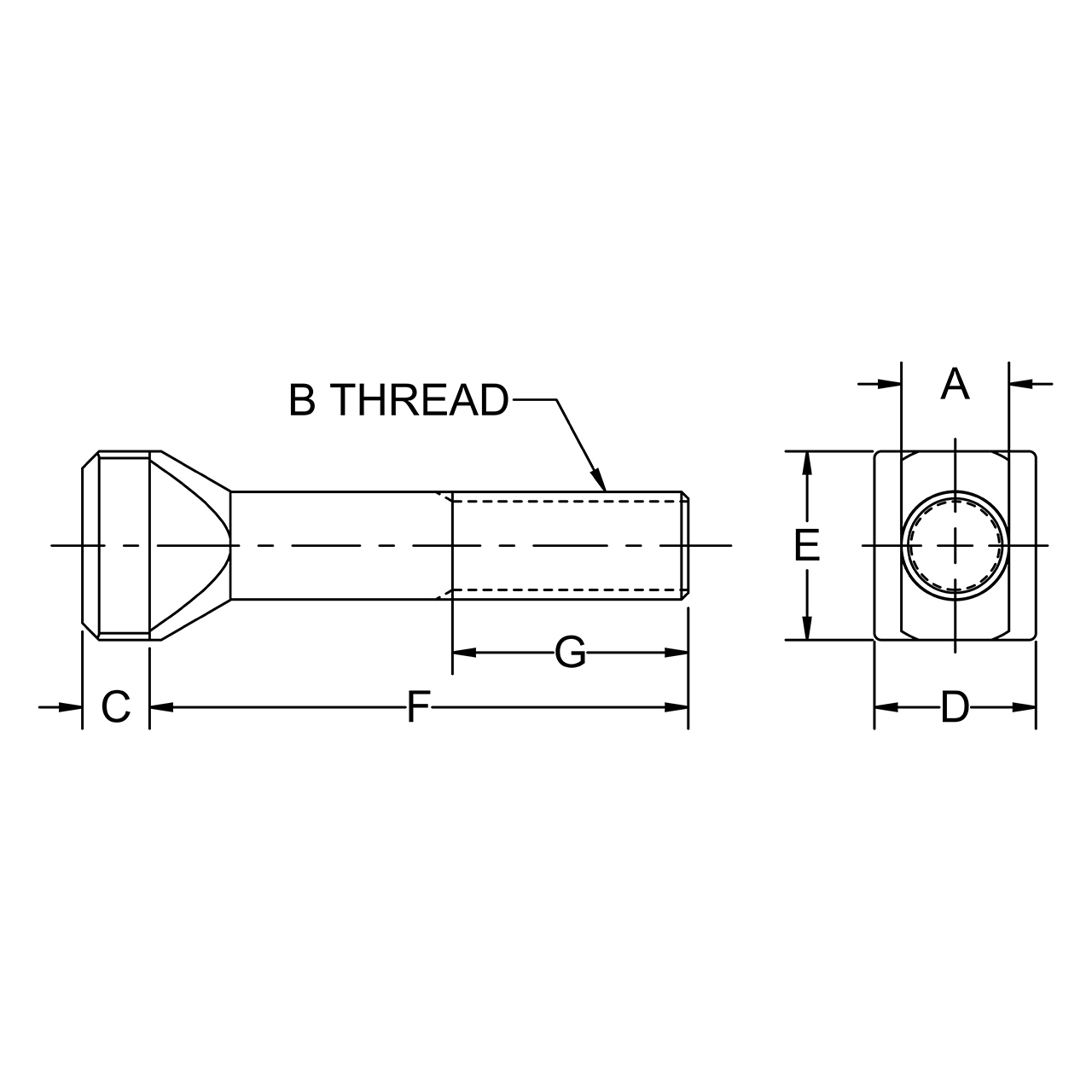

Parts Specification
| Aslot Width | Bthread | C | D X E | Flength | G |
| 16 | M16 | 9 | 25 x 25 | 100 | 65 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
