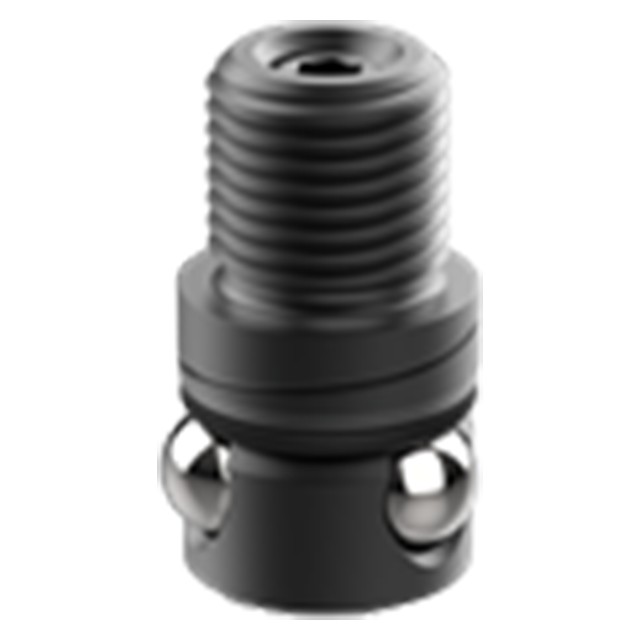

Carr Lane CLM-16-HCLPK | 16mm Shank Headless Carr Lock Clamp

$6.89
Brand:
Carr Lane
Shank Diameter (mm):
16.00mm
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (Inch):
5/8"
SKU:
50021161
UPC:
Weight:
0.10 LBS
Shipping:
Calculated at Checkout

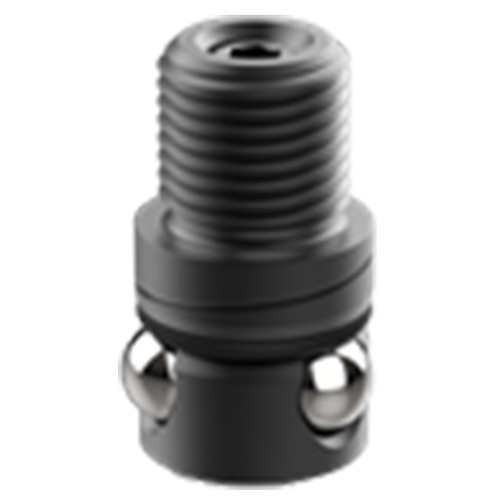

Headless Carr Lock Clamps

The Headless Carr Lock System allows accurately locating and clamping at the same time, with just the turn of a hex wrench. Ideal for mounting quick-change tooling on a subplate while taking minimal real estate on the top of your fixture. The Headless Carr Lock Clamp comes in two variants, primary (-1) and secondary (-2). The primary clamp is used to accurately locate your plate while the looser fit on the secondary clamp reduces binding. Made in USA.

Application Information

Application 1 (Round-Diamond Assembly): (1) Headless Carr Lock Clamp(1) Round Pin(1) Diamond Pin

Application 2 description (2HCLC Assembly): (2) Headless Carr Lock Clamps

Material

Item Material Heat Treat Finish DFARS RoHS
Clamp Body 4340 Steel Heat Treated Rc 40-45 -
Balls 440C Stainless Steel - -
Clamping Screw Carbon Steel - Black Oxide
O-Ring Viton - -

Parts Specification

A Shank Diameter (mm)
16mm
