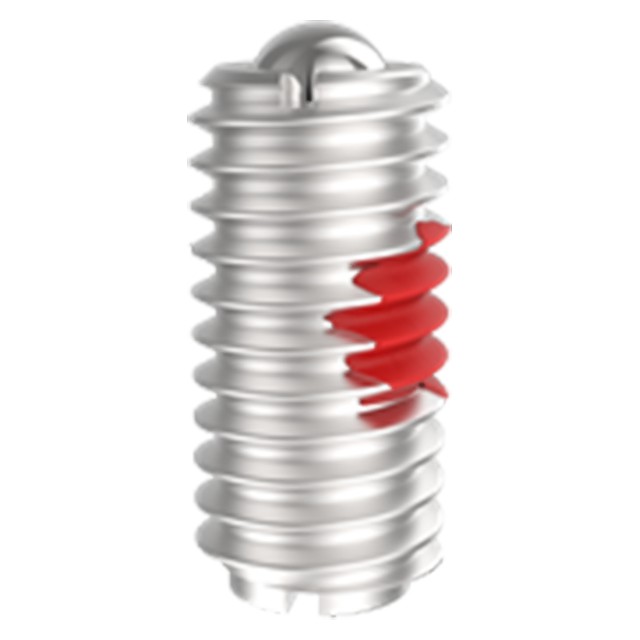

Ball Plungers-Stainless Steel
Stainless steel body for extra corrosion resistance, and a 440C stainless steel ball. Made in USA. Install and/or adjust from either end. When using the slot at the ball end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring.
Application Information
Internal View
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 300-Series Stainless Steel | - | - | Yes | Yes |
| Ball | 440C Stainless | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | End Force | Initial End Force (n) | Final End Force (n) | B (mm) | C (mm) | D Diameter (mm) |
| M16 | 2 mm | Medium | 40 N | 80 N | 25 mm | 2.5 mm | 9.5 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Pitch (Inch):
5/64"
Pitch (Decimal Inch):
0.0787"
Pitch (mm):
2.00mm
Thread:
M16
