Carr Lane CLM-16-SLFN-S | M16 Thread x 2mm Pitch Stud Leveling Feet

$57.90
Ships:
From Manufacturer
Brand:
Carr Lane
Thread Size:
M16
Ships:
From Manufacturer
SKU:
50016199
UPC:
Weight:
0.45 LBS
Shipping:
Calculated at Checkout

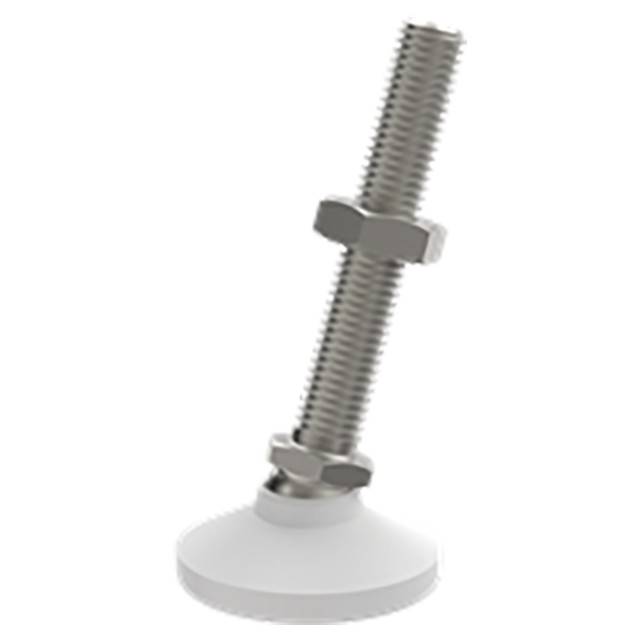

Stud leveling Feet

High-quality, heavy-duty leveling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large stainless-steel swivel ball provides extra corrosion resistance with a 20° total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a stainless-steel pad. Made in USA.

Application Information

A Stud Leveling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap

Design Considerations & Safety Precautions

Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.

Material

ItemMaterialHeat TreatFinish
Body300-Series Stainless Steel--
PadWhite Delrin 500--

Parts Specification

A ThreadThread Pitch (mm)B (mm)C Diameter (mm)D (mm)E (mm)F (mm)Load Rating (kg)
M162mm24mm63.5mm8mm32mm51mm550 kg
