CL-200-PC Series
Tapped Plunger

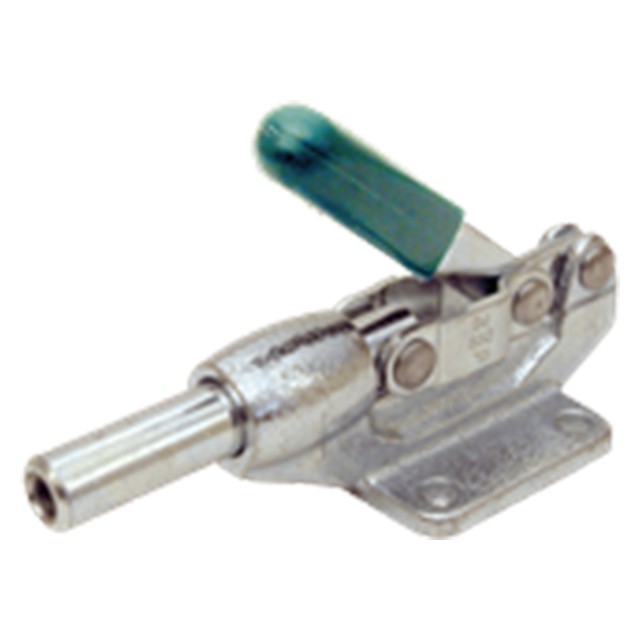

Durable plunger clamp with a nodular iron base. Locks in extended or retracted position. 1-5/8" plunger travel. Plunger is tapped to accept any 3/8-16 spindle (M10 in metric).
Clamping Action
Clamped Position (Push)
Open Position (Push)
Clamped Position (Pull)
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1215, 1008,1010 and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Base | Nodular Iron | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Tapped Hole In Plunger | Thread Pitch (mm) | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Flanged Base | M10 | 1.5mm | 850lbs. | 1.4lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0591"
Pitch (mm):
1.50mm
