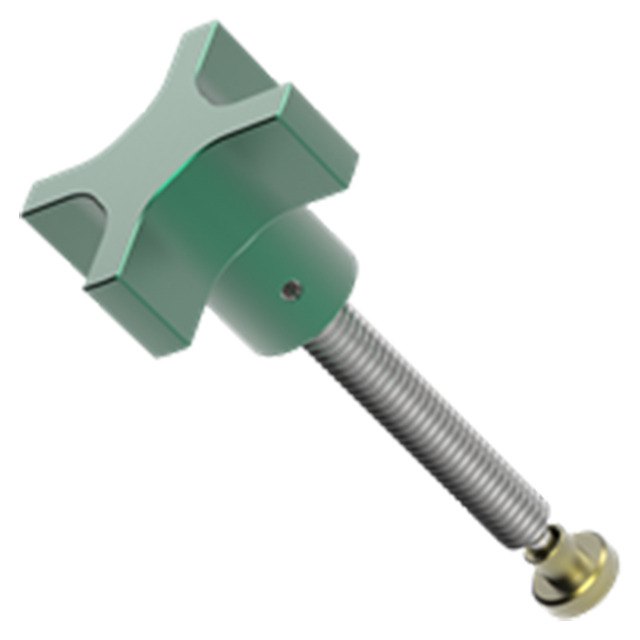

Extruded Hand Knob Swivel Feet
Extruded Hand knob assembly with a removable swivel foot. Clamping screw is securely pinned in the knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Made in the USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Knob | Extruded Aluminum | Yes | Green Anodize | Yes | Yes |
| Screw | 1215 Steel | Yes | Zinc Plated Clear Chromate | Yes | Yes |
| Steel Foot | 1215 Steel | Yes | Zinc Plated Clear Chromate | Yes | Yes |
| Delrin Foot | White Delrin 500 | Yes | Yes | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Diameter (mm) | E Diameter (mm) | F (mm) | H (mm) | K Diameter (mm) |
| M8 | 1.25mm | 60mm | 4mm | 44mm | 12.5mm | 9mm | 28mm | 19mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
