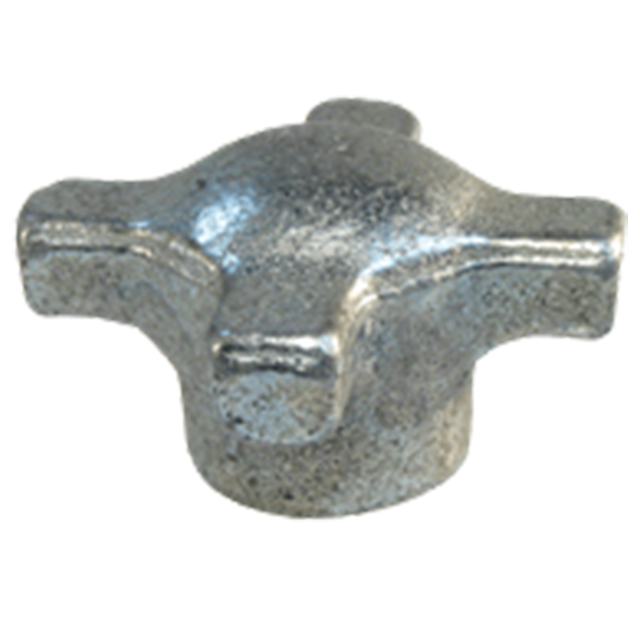

Hand Knobs (Cast Iron)
Classic, easy-to-grip cast iron clamping knob. F-prong design provides a firm grip for applications requiring quick tightening and high torque. Choice of five knob sizes, each available blank, tapped, tapped through, or reamed. Made in USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Hand Knobs (Cast Iron) | Zinc Plated Clear Chromate | - | - | ✔ | ✔ |
Parts Specification
| D Diameter (mm) | A Diameter (mm) | B (mm) | C (mm) | H (mm) | E Thread | Thread Pitch (mm) | E Thread Depth ±1.6 (mm) |
| 54mm | 25mm | 16mm | 11mm | 35mm | M12 | 1.75mm | 25mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter:
54mm
Ships:
From Manufacturer
