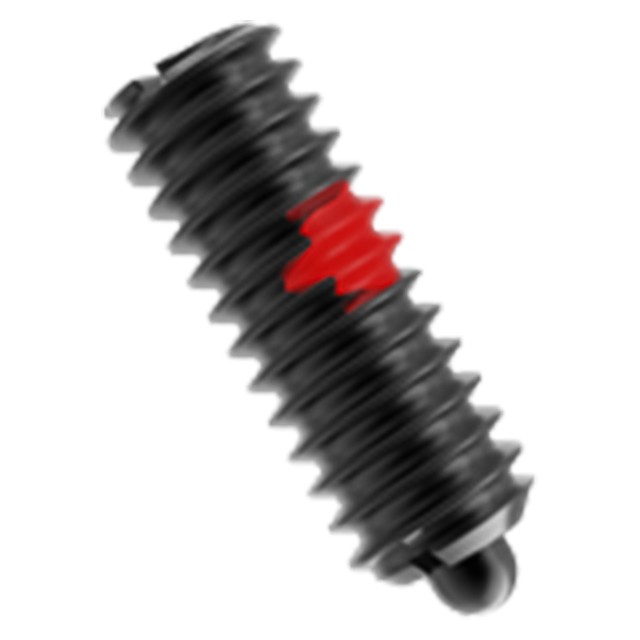

Short Spring Plungers-Steel
Short Spring Plungers have a shorter overall length, and shorter stroke, than the standard Spring Plungers. The version has a steel body and a hardened steel plunger nose. Made in USA.
Install and/or adjust from either end. When using the slot at the plunger end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring (see Related Products below). A thread-locking element holds the unit securely in place after installation.
Internal View
Nose Extended
Nose Retracted
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide | Yes | Yes |
| Plunger Nose | 1215 Steel | Carburized-Hardened | Black Oxide(heavy force) or zinc plated clear chromate (light force) | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | Initial End Force (n) | Final End Force (n) | B (mm) | C±.3 (mm) | D Diameter (mm) |
| M6 | 1 mm | 13 N | 47 N | 13.5 mm | 2 mm | 3.02 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Decimal Inch):
3.0200"
Thread:
M6
Diameter (Inch):
1"
Diameter (mm):
76.71mm
