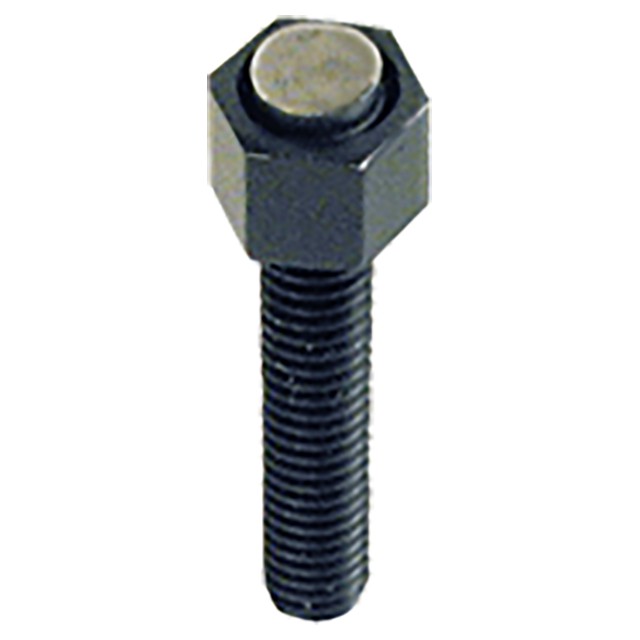

Gripper Swivel Contact Bolts-Mini
Mini-size threaded contact bolt with a built-in swivel ball held by a retaining ring. The flat gripper face is machined directly on the swivel ball. A positive stop prevents the ball from swiveling too far. Can be used as a contact bolt, or as a support. Made in USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Gripper Screw | Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Flat Steel Swivel Ball | Steel, Hardened | - | Black Oxide | Yes | Yes |
| O-ring | Ruber | - | - | Yes | Yes |
Parts Specification
| A Thread (Inch) | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | F Diameter (mm) | G |
| M6 | 1mm | 12mm | 6mm | 9.5mm | 10mm | 7mm | 14° |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
