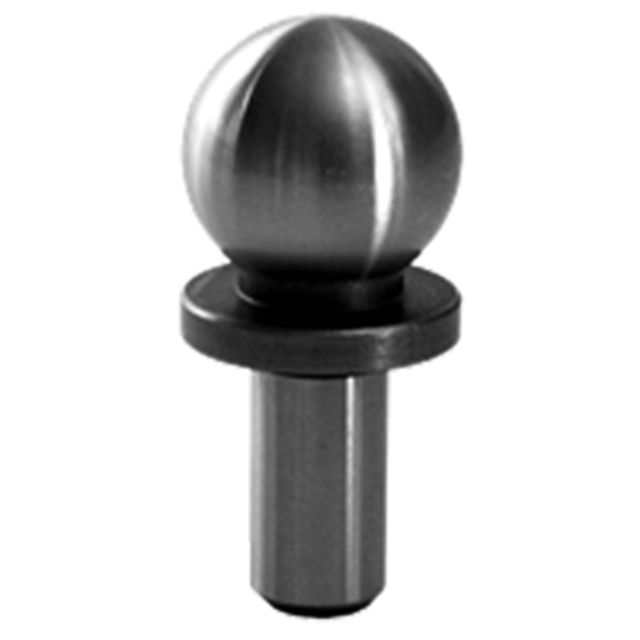

Construction Balls-Shoulder Type
Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. Shoulder type has a precision height-reference shoulder to locate the ball in three dimensions. Concentricity between ball and shank is .0002" TIR. Made in USA.
Application Information
Shoulder-Type Construction Balls provide a reference point in three dimensions.
Material
| Stainless Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 440 Stainless Steel | Heat Treated Rc 57-59 | - | Yes | Yes | |
Parts Specification
| Ball Diameter Nominal (mm) | Ball Diameter Actual (mm) | A Diameter Nominal (mm) | A Diameter Actual (mm) | B (mm) | C Thread | Thread Pitch (mm) | D (mm) | E Diameter (mm) | F (mm) | Style |
| 20mm | 20.004 / 19.994mm | 10mm | 10.000 / 9.989mm | 38mm | M6 | 1mm | 9.5mm | 20mm | 20mm | 1 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Pitch (Inch):
3/64"
Pitch (Decimal Inch):
0.0394"
Pitch (mm):
1.00mm
Ball Diameter (Decimal Inch):
0.7874"
Ball Diameter (Inch):
25/32"
Ball Diameter (mm):
20.00mm
