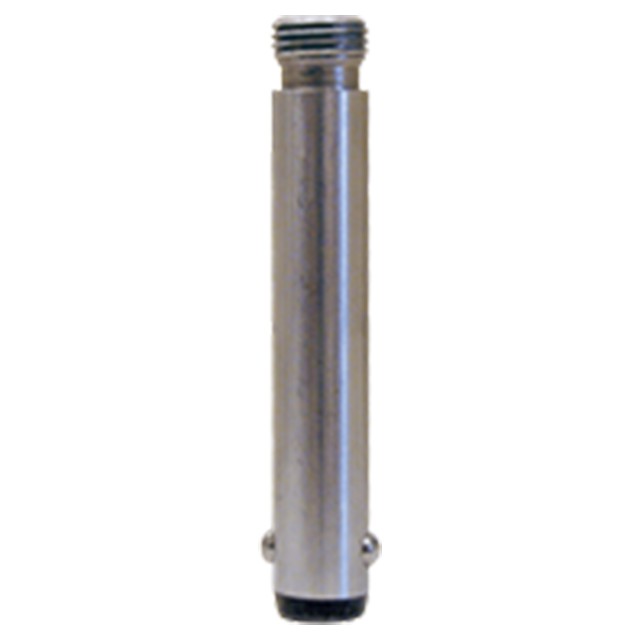

Carr Lane CLM-8-TDP-25-S | 8mm Diameter x 25mm Grip Length Threaded Detent Pin

$9.48
Brand:
Carr Lane
Diameter (mm):
8.00mm
Grip Length (mm):
25.00mm
Grip Length (Decimal Inch):
0.9843"
Grip Length (Inch):
63/64"
Diameter (Decimal Inch):
0.3150"
Diameter (Inch):
5/16"
SKU:
50013543
Weight:
0.04 LBS
Shipping:
Calculated at Checkout

Threaded Detent Pins

have one end threaded for a knob handle. These quick-release alignment pins have a solid shank and spring-loaded locking balls. Locking balls hold the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA. Knobs can be permanently secured with thread-locking adhesive if desired (an adhesive such as Loctite 263 is suitable for most applications).

Application Information

The pin's threaded end accepts virtually any type of knob handle.

Material

Shank > 300-series stainless. Spring > 17-7PH/302 stainless. Balls > 440C stainless. DFARS and RoHS compliant.

Parts Specification

A Diameter Nominal (mm)A Diameter Actual (mm)Grip Length (mm)B (mm)C (mm)D ThreadThread Pitch (mm)F (mm)
8mm7.95mm25mm9.22mm9.11mmM61mm10mm
